Window Guide, Removing And Installing: Removing

-- Remove the inner window shaft strip. Refer to Inner Window Shaft Strip, Removing and Installing  .

-- Remove the outer window shaft strip. Refer to Outer Window Shaft Strip, Removing and Installing  .

-- Remove the B-pillar trim on the front door. Refer to FRONT DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Loosen the fixed front door window at the upper clip. Refer to Fixed Front Door Window, Removing and Installing .

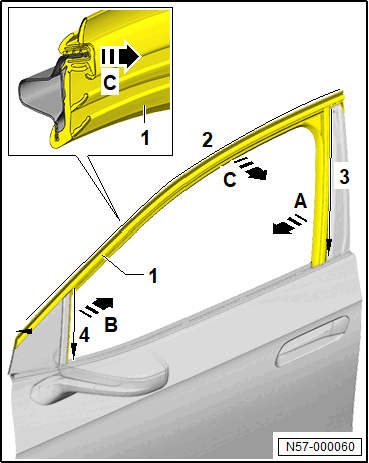

-- Disconnect the window guide -1- in area -3- in the -direction of the arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the window guide -1- in area -4- in the -direction of the arrow B-.

-- Remove the window guide -1- in areas -3- and -4- from the mounts on the door.

-- Remove the window guide -1- in area -2- in the -direction of the arrow C-.
