Rearview Camera -R189-, CALIBRATING

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

If the peripheral camera system was installed, the calibration for the peripheral camera system has been performed. Refer to PERIPHERAL CAMERA, CALIBRATING  .

-- Establish the requirements. Refer to Requirements .

-- Connect the Vehicle Diagnostic Tester.

Calibration Tool - Wheel Center Mounting:VAS 6350/1A  , Installing:

-- Check which hole circle the rims have.

-- Equip the Calibration Tool - Wheel Center Mountings:VAS 6350/1  appropriately.

-- To do so, secure the three wheel bolt adapters in the hole for each Calibration Tool - Wheel Center Mountings:VAS 6350/1  .

-- Place the paddle on both Calibration Tool - Wheel Center Mountings:VAS 6350/1  and secure them using a clamping screw.

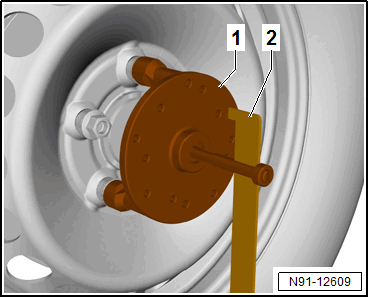

-- Place the Calibration Tool - Wheel Center Mountings:VAS 6350/1  -1- onto the wheel bolts on the rear axle.

GWWN91-12609Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

The Calibration Tool - Wheel Center Mountings:VAS 6350/1  are positioned by the "O-rings" in the adapters and secured.

NOTE:

Attach the Calibration Tool - Wheel Center Mountings:VAS 6350/1  onto the wheels so that any installed "anti-theft" wheel bolts are not connected to the Calibration Tool - Wheel Center Mountings:VAS 6350/1  .

-- Adjust the paddles with the aid of clamping screw so that the paddles move freely just above the floor. Check the paddles for ease of movement.

-- Install and align the Calibration Tool:VAS 6350A  . Refer to Calibration Unit .

Distance measurement:

-- Switch on the Calibration Tool - Spacing Laser:VAS 6350/2  -1-.

The following display appears:

Fig 1: The Following Display Appears -1- :
GWWN91-12610Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Display on Calibration Tool - Spacing Laser:VAS 6350/2A  :

NOTE:

The laser is switched on at same time.

The display shows how to stop the Calibration Tool - Spacing Laser:VAS 6350/2  . Press the corresponding button.

Fig 2: Identifying Front Edge And Rear Edge
GWWA91-12100Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Attach with the front edge.
  2. Attach with the rear edge.

-- Hold the Calibration Tool - Spacing Laser:VAS 6350/2  -2- as shown, on one side the calibration board must be flush at the angle, the Calibration Tool - Spacing Laser:VAS 6350/2  -2- must be securely at an angle.

GWWN98-10007Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the measurement button briefly.

The laser switches on.

The laser beam from the Calibration Tool - Spacing Laser:VAS 6350/2  -2- must hit the lower, enlarged section of the paddle -1-.

If the laser beam does not contact the paddle, the paddle must be corrected respectively using the clamping screw on the Calibration Tool - Wheel Center Mountings:VAS 6350/1  .

-- Use one hand to secure the Calibration Tool - Spacing Laser:VAS 6350/2  in the bracket on the Calibration Tool:VAS 6350  while the laser beam is visible on the paddle.

-- Then press the measurement button for the distance measurement briefly.

-- Write down the value.

-- Repeat this measurement on the other side of the Calibration Tool:VAS 6350  in the same way for the front wheel.

The distance value must be the same on both sides.

If values are not identical:

-- Align the Calibration Unit:VAS 6350A  long enough so that both sides are identical.

-- When adjusting, make sure the Calibration Tool - Linear Laser:VAS 6350/3A  strikes the center above the VW emblem and that the level indicator remains centered. Adjust if necessary.

Dimension measurement -H- :

-- Measure the height of the Calibration Unit:VAS 6350A  , dimension -H- (top edge platform - floor).

Fig 3: Identifying Height Of Calibration Platform, Dimension -H-
GWWA91-11140Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Make sure the Calibration Tool - Spacing Laser:VAS 6350/2A  is positioned correctly (flush with the front edge).

The display shows how to stop the Calibration Tool - Spacing Laser:VAS 6350/2  . Press the corresponding button.

Fig 4: Identifying Front Edge And Rear Edge
GWWA91-12100Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Attach with the front edge.
  2. Attach with the rear edge.

-- Note the value for the height of the Calibration Tool:VAS 6350  .

NOTE:

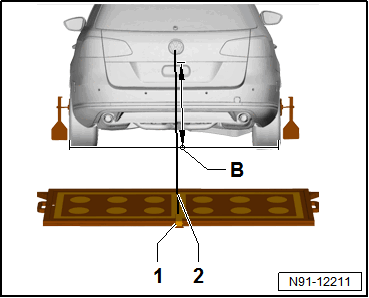

The vehicle in the illustration is only a basic outline.

GWWN91-12211Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Measure the -dimension a- using a commercially available folding ruler from the center of the rearview camera lens to the wheel contact surface.

-- Note the value for the dimension -B-.

The measured distance measurement, the height of the calibration device and the height of the center of the rearview camera lens must be entered in the Vehicle Diagnostic Tester in "mm".

Calibrating Procedure

-- Perform the calibration using the Vehicle Diagnostic Tester.

From here the Vehicle Diagnostic Tester advances the calibration procedure forward.

CAUTION:

Reflections impair the and may make it impossible to perform the calibration.

- Make sure light does not reflect off the calibration board.
