Control Module for Adaptive Cruise Control -J428-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front emblems. Refer to FRONT EMBLEMS, REMOVING AND INSTALLING .

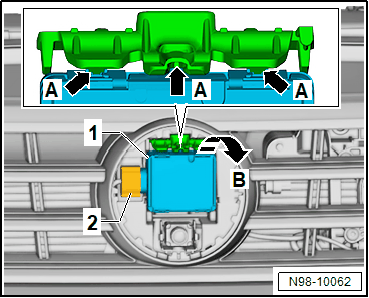

-- Release the clamps -arrows A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the control module -1- in the -direction of the arrow B-.

-- Disconnect the connector -2-.
