Front Peripheral Camera -R243-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
-- Turn off the ignition and all electrical equipment.
-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.
-- Remove the bolts in between the front bumper cover and the lock carrier. Refer to OVERVIEW - BUMPER COVER .
NOTE:

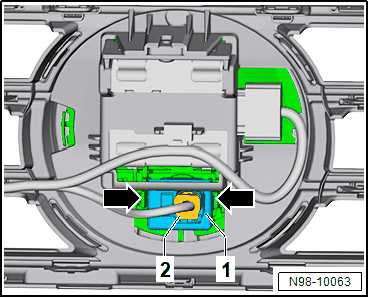

The single components can differ in shape and appearance from the shown illustration depending on the vehicle version.
-- Disconnect the connector -2-.
-- Release the clips -arrow-.
-- Remove the peripheral camera -1-.
-- Remove the peripheral camera -1- from the cover.
