Left Peripheral Camera -R244- / Right Peripheral Camera -R245-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Remove the mirror cap. Refer to MIRROR CAP, REMOVING AND INSTALLING .

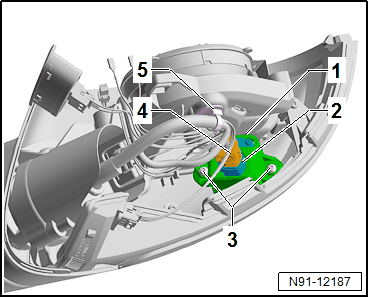

-- Disconnect the connector -4- from the peripheral camera -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cable bracket -5- from the mirror base.

-- Remove the bolts -3-.

-- Guide out the bracket -1- with the peripheral camera -2- from the mirror base and remove from the bracket.
