Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Raise the front seat into its highest position and then move it all the way back.

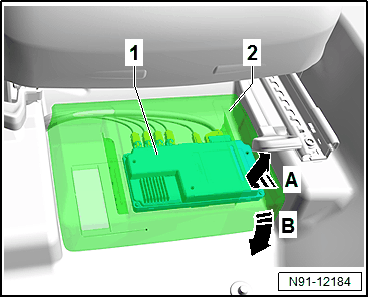

-- Slide the module carrier -2- together with the control module -1- outward and slightly lift at the center tunnel -arrow A-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Pivot out the module carrier -2- with the control module -1- from the outer mount in -direction of the arrow B-.

-- Turn around the module carrier -2- with the control module -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

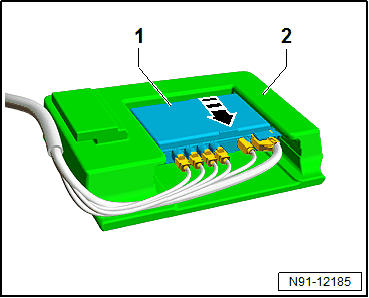

-- Disconnect the connectors from the control module -1-.

-- Remove the control module -1- from the module carrier -2- -arrow-.
