Front Peripheral Camera R243, Removing And Installing: Removing

The Front Peripheral Camera -R243- will be called the camera in the information that follows.

-- Remove the front emblem. Refer to FRONT EMBLEM, REMOVING AND INSTALLING .

-- Disconnect the connector.

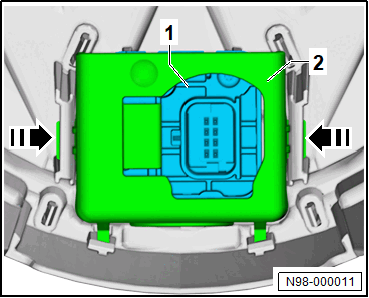

-- Press the hook in the direction of -arrow- and remove the bracket -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

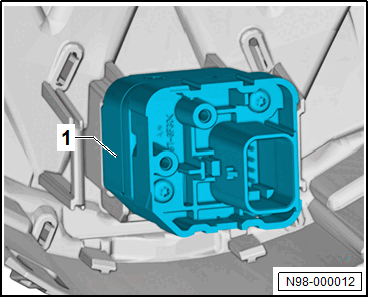

-- Remove the camera -1- from the front emblem.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
