Overview - Rear Side Window

The overview shows the left side of the vehicle as an example

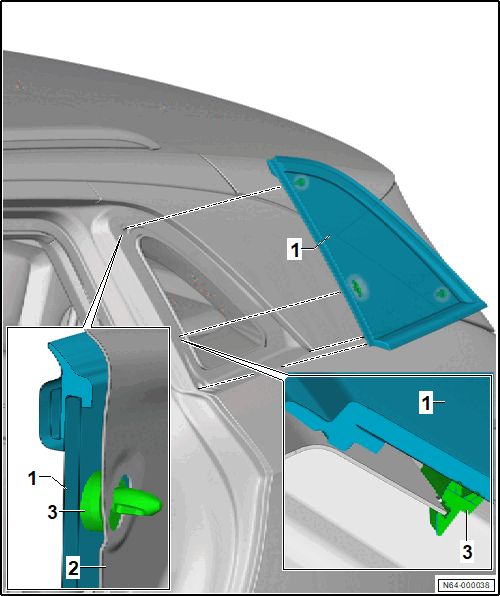

Fig 1: Rear Side Window

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Rear Side Window
   • Refer to Rear Side Window, Removing and Installing  .
   • Refer to Damaged Rear Side Window, Removing  .
2. Body Flange
3. Clip
   • Quantity: 3
