Overview - Windshield

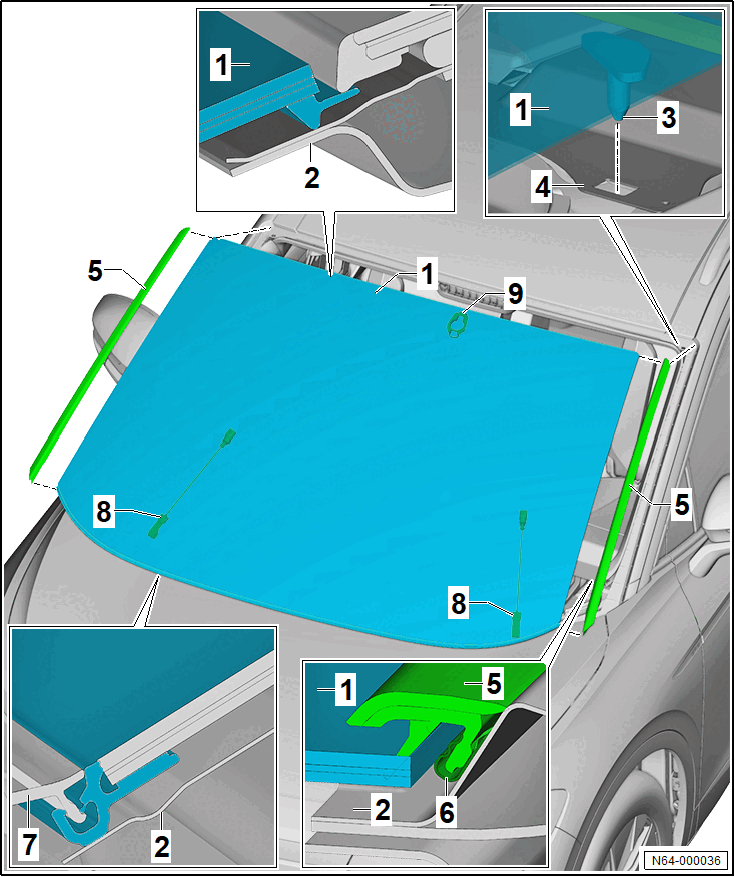

Fig 1: Windshield

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Windshield
- Depending on the equipment/version
- Refer to Windshield, Removing and Installing .
- Refer to Damaged Windshield, Removing .
Body Flange
- Refer to Body Flange, Preparing for Installation .
Centering Pin
- Positioning is depending on the model
- Depending on the equipment/version
- Quantity: 2
Centering Pin Mount
- Positioning is depending on the model
Drip Rail
- Refer to Drip Rail, Removing and Installing .
Retaining Strip
- Refer to Retaining Strip, Removing and Installing .
Plenum Chamber Cover
- Refer to Plenum Chamber Cover, Removing and Installing .
Windshield Defogger -Z2- Connector
- Model-dependent
- Depending on the equipment/version
Interior Rearview Mirror Baseplate
- Refer to INTERIOR REARVIEW MIRROR RETAINING PLATE, INSTALLING .
