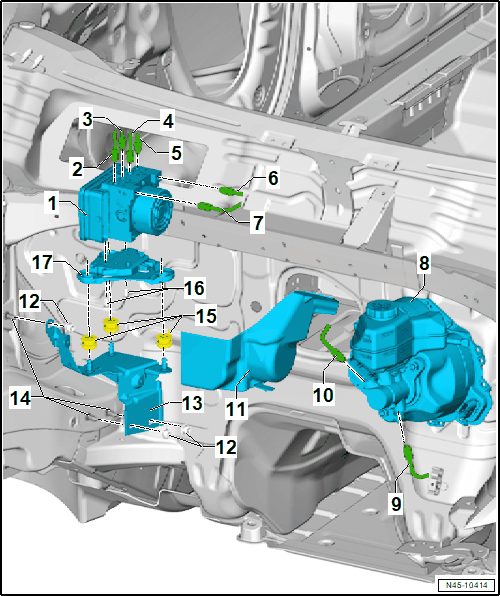

Overview - Control Module And Hydraulic Unit, LHD
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- ABS Control Module -J104- and ABS Hydraulic Unit -N55-
- Removing and Installing. Refer to ABS Control Module -J104- /ABS Hydraulic Unit -N55-, REMOVING AND INSTALLING .
- Brake Line
- To the right rear brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Brake Line
- To the left front brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Brake Line
- To the right front brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Brake Line
- To the left rear brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Brake Line
- To the brake master cylinder/secondary piston circuit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Brake Line
- To the brake master cylinder/primary piston circuit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Brake Booster/Brake Master Cylinder
- Overview. Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER .
- Brake Booster, Checking. Refer to the appropriate Service Information.
- Removing and Installing. Refer to BRAKE BOOSTER, REMOVING AND INSTALLING .
- Brake Line
- Brake master cylinder/primary piston circuit to hydraulic unit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Brake Line
- Brake master cylinder/secondary piston circuit to hydraulic unit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Heat Shield
- Nut
- 20 Nm
- Bracket
- Studs
- Rubber Bushing
- Bolt
- 8 Nm
- Bracket
