Overview - Control Module And Hydraulic Unit, RHD
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

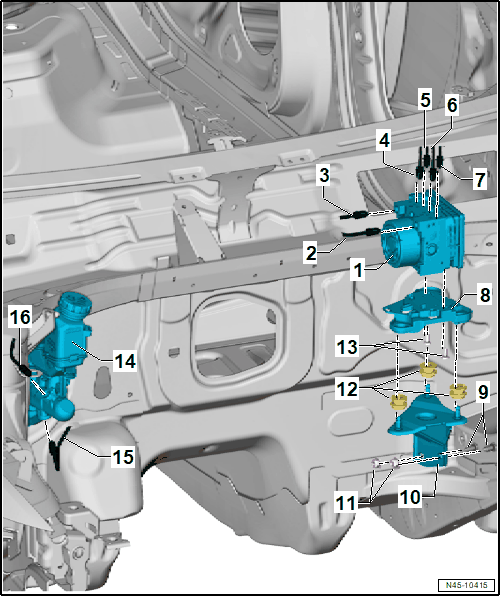

- ABS Hydraulic Unit -N55- with ABS Control Module -J104-
- Component Location Overview. Refer to ANTI-LOCK BRAKING SYSTEM (ABS) REPAIR INFORMATION .
- Overview. Refer to OVERVIEW - CONTROL MODULE AND HYDRAULIC UNIT, RHD .
- Removing and Installing. Refer to ABS CONTROL MODULE AND ABS HYDRAULIC UNIT, REMOVING AND INSTALLING, RHD .
- ABS Control Module -J104-, Disconnecting from ABS Hydraulic Unit -N55-. Refer to CONTROL MODULE, SEPARATING FROM HYDRAULIC UNIT .
- ABS Control Module -J104-, Installing on ABS Hydraulic Unit -N55-. Refer to CONTROL MODULE, INSTALLING ON HYDRAULIC UNIT .
- Connecting the brake lines. Refer to BRAKE LINES, ATTACHING TO HYDRAULIC UNIT, RHD .
- Brake Line
- Brake master cylinder/secondary piston circuit to hydraulic unit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
- 14 Nm
- Brake Line
- Brake master cylinder/primary piston circuit to hydraulic unit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
- 14 Nm
- Brake Line
- To the right rear brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
- 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Brake Line
- To the left front brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
- 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Brake Line
- To the right front brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
- 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Brake Line
- To the left rear brake caliper
- Identification: 5.25 mm diameter and tube fitting with a M10 x 1 thread
- Repairing the brake lines. Refer to BRAKE LINES, REPAIRING .
- 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Bracket
- After installing, heck for secure fit
- Studs
- Bracket
- Nut
- Quantity: 2
- 20 Nm
- Rubber Bushing
- Quantity: 3
- Bolt
- Quantity: 2
- 8 Nm
- Brake Booster with Master Brake Cylinder
- Overview. Refer to OVERVIEW - BRAKE BOOSTER/BRAKE MASTER CYLINDER, RHD .
- Brake Booster, Checking. Refer to the appropriate Service Information.
- Removing and Installing. Refer to BRAKE BOOSTER, REMOVING AND INSTALLING, RHD VEHICLE .
- Brake master cylinder, removing and installing. Refer to BRAKE MASTER CYLINDER, REMOVING AND INSTALLING, RHD VEHICLES .
- Brake Line
- Brake master cylinder/primary piston circuit to hydraulic unit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
- Brake Line
- Brake master cylinder/secondary piston circuit to hydraulic unit
- Identification: 6 mm diameter and pipe fitting with a M12 x 1 thread
- With standard tool: 14 Nm
- With special tools Mini Torque Wrench:VAS6854 , Torque Wrench - Universal Joint:VAG1410/7 and Open Ring Spanner Insert - AF 11mm:VAG1410/6 : 12 Nm
