Overview - Assembly Mounts
WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.
- Engine Support
- Refer to Engine Support, Removing and Installing .
- Bolt
- 10 Nm +90°
- Replace after removing
- Bolt
- 23 Nm
- Bracket
- Bolt
- Replace after removing
- Tightening specification and sequence. Refer to Fig 2.
- Quantity: 3
- Engine Mount
- With support arm
- Refer to Engine Mount, Removing and Installing .
- Bolt
- 25 Nm + 90°
- Replace after removing
- Double Bolt
- 40 Nm +90°
- Replace after removing
- Ground Cable
- Depending on the equipment/version
- Nut
- 9 Nm
- Depending on the equipment/version
- Quantity: 2
- Double Bolt
- 60 Nm +90°
- Replace after removing
- Pendulum Support
- Refer to Pendulum Support, Removing and Installing .
- Bolt
- Replace after removing
- Tightening specification and sequence. Refer to Fig 3.
- Bolt
- Replace after removing
- Tightening specification and sequence. Refer to Fig 3.
- Bolt
- Replace after removing
- Tightening specification and sequence. Refer to Fig 3.
- Bolt
- 60 Nm + 90°
- Replace after removing
- Quantity: 3
- Transmission Mount
- With support arm
- Refer to Transmission Mount, Removing and Installing .
- Bolt
- 50 Nm +90°
- Replace after removing
- Quantity: 4
Engine Support - Tightening Specification and Sequence
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 through 3- | 7 Nm |
| 2. | -1 through 3- | 40 Nm |
| 3. | -1 through 3- | 90° |

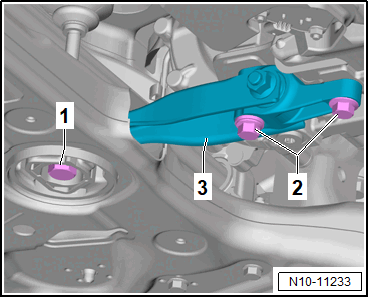

Pendulum Support - Tightening Specification and Sequence
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -2- | 50 Nm |
| 2. | -1- | 130 Nm |
| 3. | -1 and 2- | 90° |
