Emergency Call Module Control Module Battery, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Arteon. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

CAUTION:

Damage to the emergency call module control module

- Shut down the emergency call module control module using the Vehicle Diagnostic Tester.

-- "0075 - Emergency battery, replacing" function Vehicle Diagnostic Tester.

-- Remove the emergency call module control module. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .

-- Remove the bolt -arrow- and remove the battery tray cover -1-.

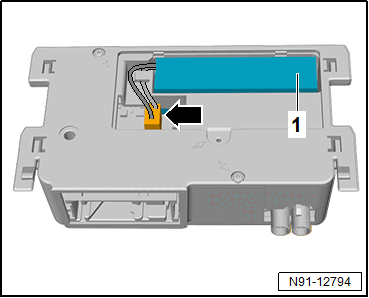

-- Release and disconnect the connector -arrow-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the emergency call module control module battery -1-.
