Control Module for Adaptive Cruise Control -J428-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the VW emblem from the radiator grille. Refer to FRONT EMBLEMS, REMOVING AND INSTALLING .

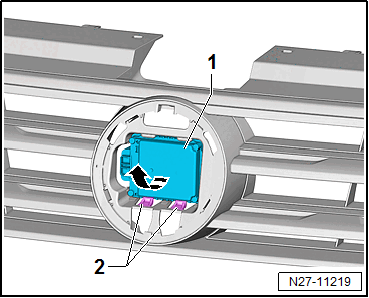

-- Release the tabs -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time pivot out the control module -1- in direction of the -arrow- from the radiator grille.
