Left Peripheral Camera -R244- / Right Peripheral Camera -R245-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Remove the cover from exterior rearview mirror. Refer to OVERVIEW - EXTERIOR REARVIEW MIRROR .

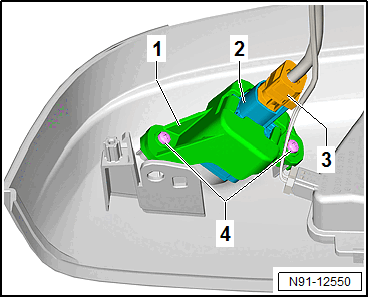

-- If not already successful, release and disconnect the connector -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -4-.

-- Remove the bracket -1- with the Left Peripheral Camera -R244- -2- from the cover.

-- Remove the Left Peripheral Camera -R244- -2- out of the bracket -1-.
