Peripheral Camera Control Module -J928-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

-- Raise the front seat into its highest position and then move it all the way back.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

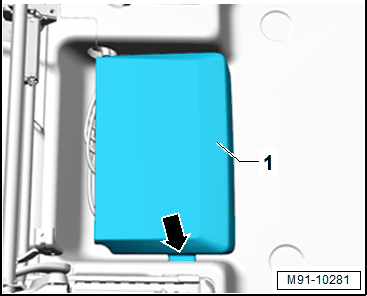

-- Remove the expanding rivets -arrows-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Push the cover -1- with the Peripheral Camera Control Module -J928-, straight in the direction of travel, while paying attention to the connected wires and turn.

-- Release and disconnect the connectors -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the catches on the cover -1- in the direction of the -arrow-.

-- At the same time remove the Peripheral Camera Control Module -J928- -2- from the cover -1-.
