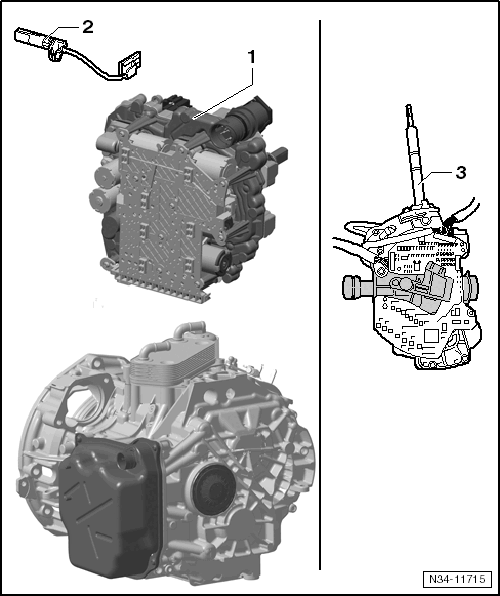

Component Location Overview - Electrical Components, Transmission Control

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Dual-Clutch Transmission Mechatronic -J743-
   • Removing and Installing. Refer to MECHATRONIC, REMOVING AND INSTALLING .
2. Transmission Input Speed Sensor -G182- and Clutch Oil Temperature Sensor -G509-
   • Not for this model
3. Selector Lever -E313-
   • With Selector Lever Sensor System Control Module -J587-, Shift Lock Solenoid -N110- and Selector Lever Park Position Lock Switch -F319-
   • The components are integrated in the circuit board for the selector mechanism function unit and cannot be replaced individually.
   • Checking. Refer to the Vehicle Diagnostic Tester.
   • Shift Mechanism, Removing and Installing. Refer to SHIFT MECHANISM, REMOVING AND INSTALLING .
