Window Guide, Removing And Installing: Installing

-- Spray the window guide -1- with soapy water to make it easier to install.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

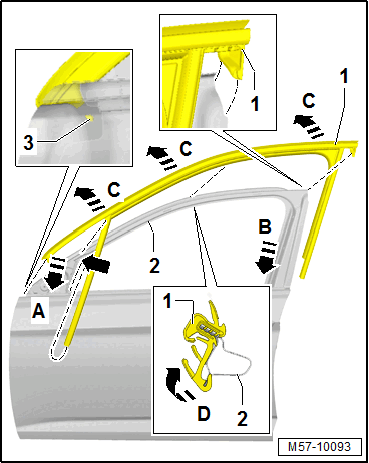

-- Push the window guide -1- in the door mounts in direction of -arrow A- and in direction of -arrow B-.

-- Mount the window guide -1- on the exterior rearview mirror bar -arrow- starting on the door flange -2- in direction of -arrow C-.

-- Roll the window guide sealing lip -1- on the door flange -2- in direction of -arrow D-.

-- Clip the clip -3- into the inner door panel.

NOTE:

Make sure the window guide -1- fits evenly when installing it (wind noises).

Further installation is the reverse order of removal.
