Window Guide, Removing And Installing: Removing

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the inner window shaft strip. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the outer window shaft strip. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the B-pillar trim. Refer to DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Remove the front door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

-- Remove the exterior rearview mirror. Refer to EXTERIOR REARVIEW MIRROR, REMOVING AND INSTALLING .

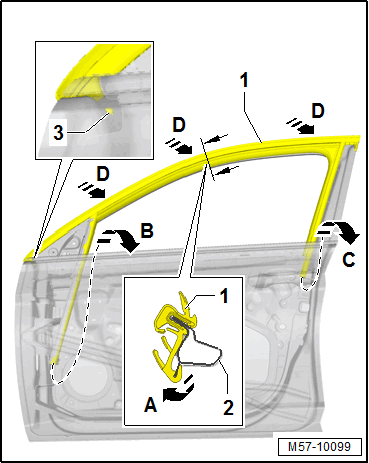

-- Loosen the clip -3-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Roll the window guide sealing lip -1- off the door flange -2- in direction of -arrow A-.

-- Remove the window guide -1- from the door mounts in direction of -arrow B- and in direction of -arrow C-.

-- Remove the window guide -1- evenly all around in direction of -arrow D- from the door flange -2-.
