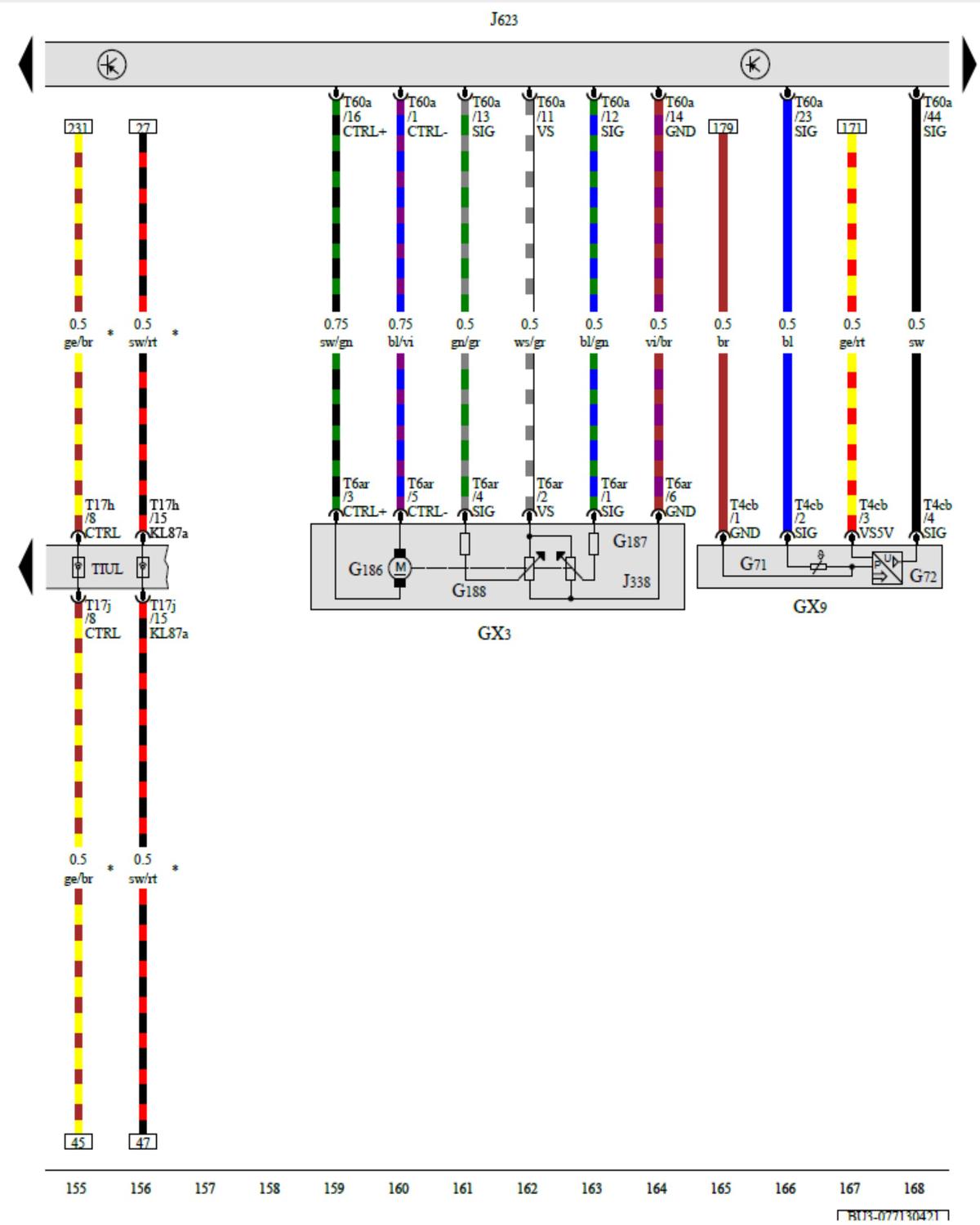

Throttle Valve Control Module, Intake Manifold Sensor, Manifold Absolute Pressure Sensor, Engine/Motor Control Module: Notes

GWWBU3-042121217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
