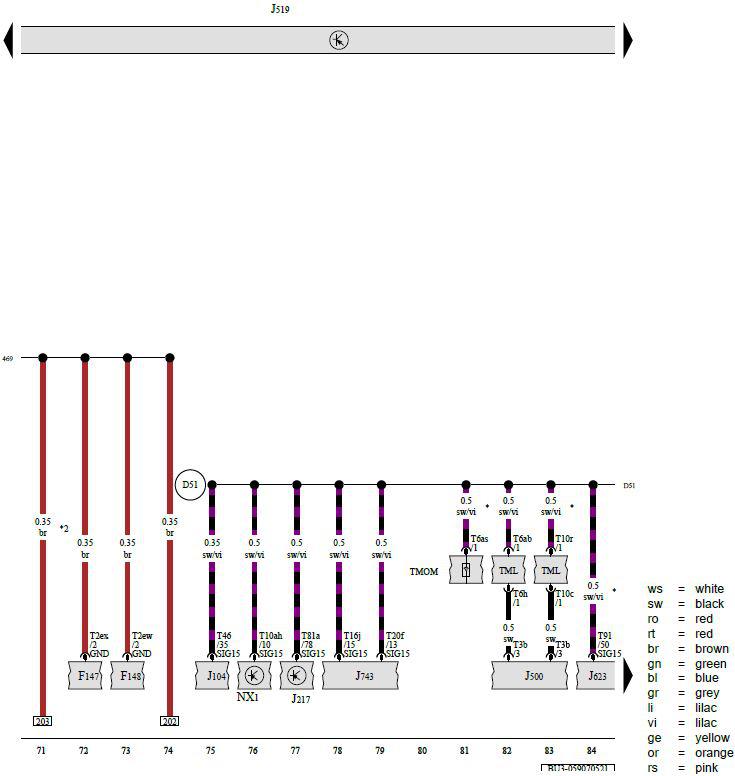

Vehicle Electrical System Control Module (4 Of 17)
F147 - Driver Vanity Mirror Lamp Contact Switch
F148 - Front Passenger Vanity Mirror Lamp Contact Switch
J104 - ABS Control Module
J217 - Transmission Control Module
J500 - Power Steering Control Module
J519 - Vehicle Electrical System Control Module
J623 - Engine/Motor Control Module
J743 - Dual-Clutch Transmission Mechatronic
NX1 - Transmission
T2ew - 2-Pin Connector
T2ex - 2-Pin Connector
T3b - 3-Pin Connector
T6ab - 6-Pin Connector
T6as - 6-Pin Connector
T6h - 6-Pin Connector
T10ah - 10-Pin Connector
T10c - 10-Pin Connector
T10r - 10-Pin Connector
T16j - 16-Pin Connector
T20f - 20-Pin Connector
T46 - 46-Pin Connector
T81a - 81-Pin Connector
T91 - 91-Pin Connector
TML - Coupling Point in Engine/Motor Compartment, Left
TMOM - Coupling Point on Engine, Top Center
469 - Ground Connection 20 (in Interior Wiring Harness)
D51 - Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)
* - For Vehicles with Diesel Engine
*2 - For Vehicles Without a Sliding/Tilting Sunroof
