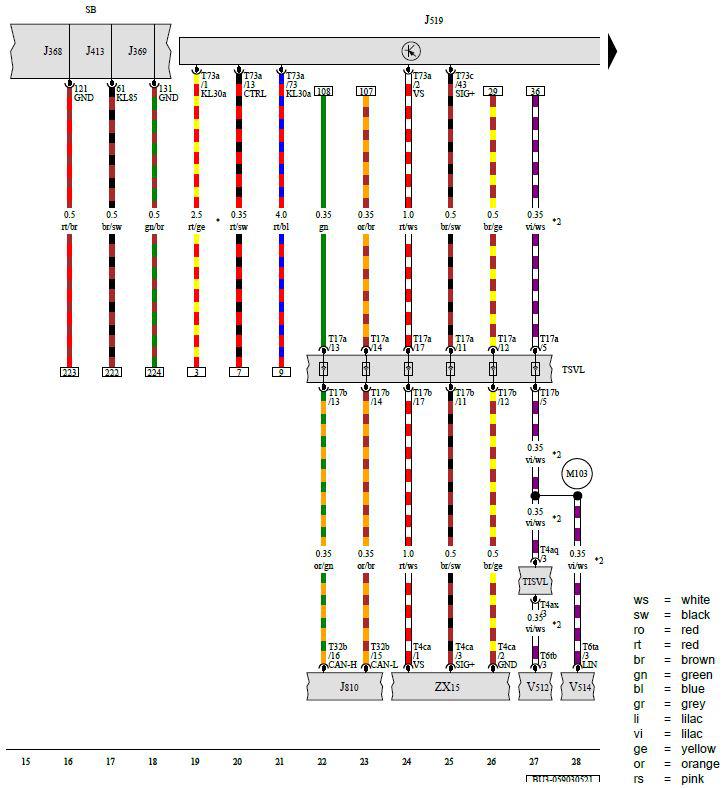

Vehicle Electrical System Control Module, Fuse Panel B

G00609700Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J368 -  Wiper Motor Relay 1

J369 -  Wiper Motor Relay 2

J413 -  Horn Relay

J519 -  Vehicle Electrical System Control Module

J810 -  Driver Seat Adjustment Control Module

SB -  Fuse Panel B

T4aq -  4-Pin Connector

T4ax -  4-Pin Connector

T4ca -  4-Pin Connector

T6ta -  6-Pin Connector

T6tb -  6-Pin Connector

T17a -  17-Pin Connector

T17b -  17-Pin Connector

T32b -  32-Pin Connector

T73a -  73-Pin Connector

T73c -  73-Pin Connector

TISVL -  Coupling Station in Left Front Seat

TSVL -  Left Front Seat Coupling Station

V512 -  Left Front Seat Backrest Fan 1

V514 -  Left Front Seat Cushion Fan 1

ZX15 -  Driver Side Heated Seat

M103 -  LIN Bus Connection 1 (in Left Front Seat Wiring Harness)

* -  For Vehicles with Seat Heating

*2 -  For Vehicles with Seat Ventilation
