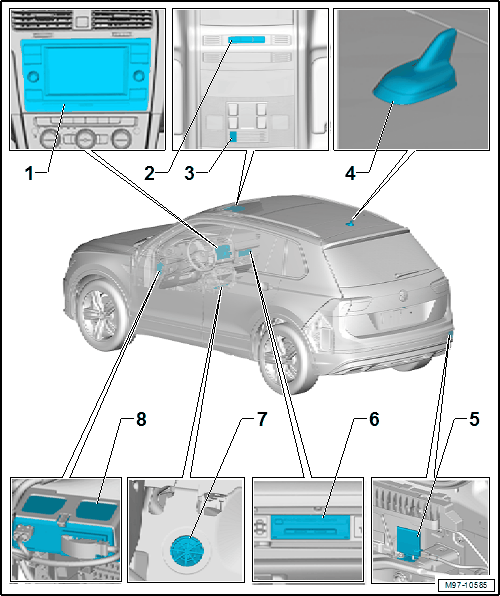

COMPONENT LOCATION OVERVIEW - MOBILE ONLINE SERVICES, VEHICLES WITH Control Module for Emergency Call Module and Communication Unit -J949- (PR NUMBER EL2/EL5)

WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Composition Touch and Composition Color: in connection with the Information Electronics Control Module 1 -J794-
- Composition Media, Discover Media or Discover Pro: single display
- Composition Touch and Composition Color removing and installing. Refer to RADIO, REMOVING AND INSTALLING .
- Composition Media, Discover Media or Discover Pro removing and installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
Cellular Telephone Preparation Control Head -E508-
- Removing and Installing. Refer to Cellular Telephone Preparation Control Head -E508-, REMOVING AND INSTALLING .
Telephone Microphone -R38-
- In the Front Interior Lamp -WX1-
- Removing and Installing. Refer to Telephone Microphone -R38-, REMOVING AND INSTALLING .
Roof Antenna -RX5-
- With GPS Antenna -R50-
- Depending on the equipment on PR number EL2/EL5 with GSM Antenna -R205-
- On PR number always with GSM Antenna -R205-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
Right Bumper Antenna
- Under the rear bumper cover on the right side
- Depending on the equipment on PR number EL2/EL5 ND QV4 as GSM Antenna -R205-
- Not installed on PR number NZ3
- Removing and Installing. Refer to RIGHT BUMPER ANTENNA, REMOVING AND INSTALLING .
Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
Emergency Call Module Speaker -R335-
- In the front passenger footwell on the heater and A/C unit
- Removing and Installing. Refer to Emergency Call Module Speaker -R335-, REMOVING AND INSTALLING .
Control Module for Emergency Call Module and Communication Unit -J949-
- Exchanging is not permitted
- Pay attention to the procedure for replacing the control modules. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REPLACING .
- Removing and Installing. Refer to Control Module for Emergency Call Module and Communication Unit -J949-, REMOVING AND INSTALLING .
