Component Location Overview - Navigation System
WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

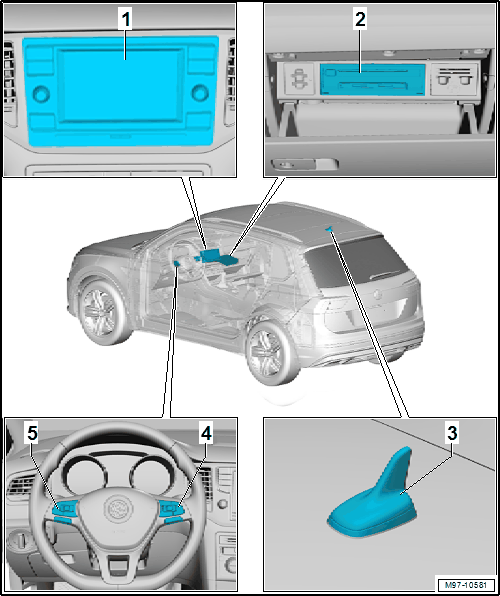

The vehicle in the illustration is only a basic outline.
- Front Information Display Control Head -J685-
- Inside the center of the instrument panel
- Removing and Installing. Refer to INFOTAINMENT SYSTEM DISPLAY, REMOVING AND INSTALLING .
- Information Electronics Control Module 1 -J794-
- In the glove compartment
- Removing and Installing. Refer to Information Electronics Control Module 1 -J794-, REMOVING AND INSTALLING .
- GPS Antenna -R50-
- In the Roof Antenna -RX5-
- Removing and Installing. Refer to ROOF ANTENNA, REMOVING AND INSTALLING .
- Right Multifunction Buttons on Steering Wheel -E441-
- Removing and Installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
- Left Multifunction Buttons on Steering Wheel -E440-
- Removing and Installing. Refer to RIGHT AND LEFT MULTIFUNCTION BUTTONS ON STEERING WHEEL -E441- / -E440-, REMOVING AND INSTALLING .
