, Removing

WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

-- Raise the front seat into its highest position and then move it all the way back.

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent switching on the ignition unintentionally.

-- Remove the expanding rivets -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Slide the cover -1- evenly in the direction of travel and remove it.

-- Release and disconnect the connector from the MOST Buses -2- from the Digital Sound System Control Module -J525- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Insert the :VAS6223/9 -1- onto the MOST Bus connector -2-.

Fig 1: Fiber-Optic Cable Harness Connector And Protective Cap For Cable Connector VAS 6223/9

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

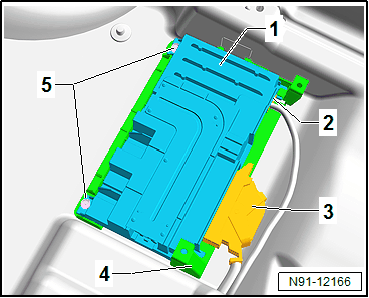

-- Release and disconnect the connector -3- from the Digital Sound System Control Module -J525- -1-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the bolts -5-.

-- Remove the Digital Sound System Control Module -J525- -1- in the direction of travel out of the bracket -4-.
