A/C Compressor, Removing And Installing On Bracket: Installing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal. Note the following:

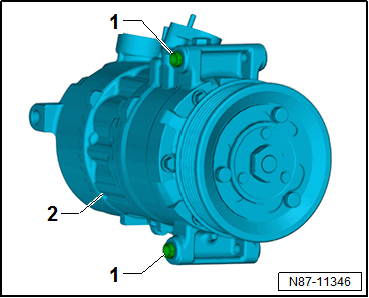

-- Thoroughly clean the contact surfaces on the A/C compressor -2- and bracket.
-- Insert the alignment sleeves -1- in the A/C compressor -2-.
CAUTION:
- After installing a new A/C compressor or filling with fresh refrigerant oil, turn the A/C compressor 10 times by hand before installing the ribbed belt.
