Display Control Head, Removing And Installing: Removing
WARNING: This page is about a different car, the 2018 Volkswagen Jetta, 2017 Volkswagen Jetta, 2016 Volkswagen Jetta, and 2015 Volkswagen Jetta. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the battery. Refer to BATTERY .
-- Remove the radio/navigation system frame. Refer to INSTRUMENT PANEL .

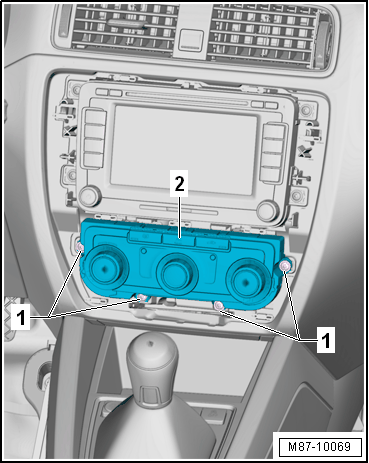

-- Remove the bolts -1-.
-- Remove the display control head -2- and disconnect the connectors on the rear side while doing this.
