Engine Cover, Removing And Installing: Removing

WARNING: This page is about a different variant/trim than selected.

-- Carefully pull the engine cover off the retaining pins one after the other in direction of -arrows-. Do not remove the engine cover on one side or in a jerking manner.

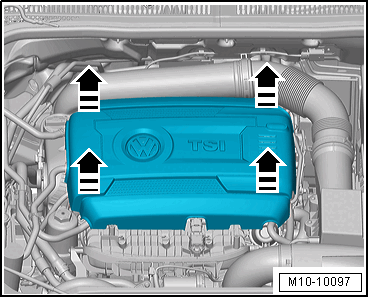

Fig 1: Identifying Engine Cover
GWWM10-10097Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
