Overview - Assembly Mounts: Notes

WARNING: This page is about a different car, the 2021 Volkswagen Tiguan, 2020 Volkswagen Tiguan, 2019 Volkswagen Tiguan, and 2018 Volkswagen Tiguan. However, it is still accessible from the selected car via links, so may be relevant.

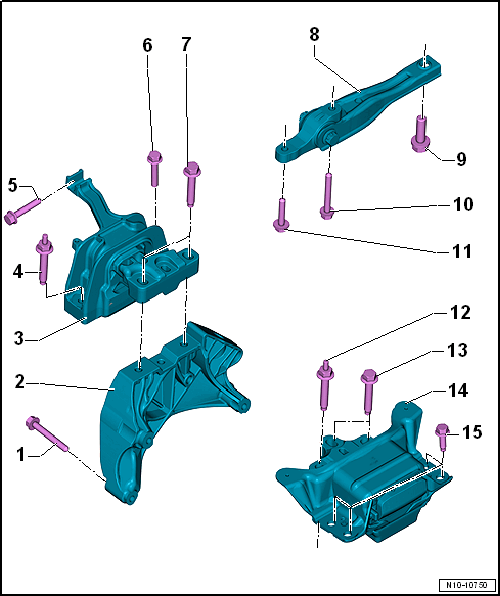

Fig 1: Exploded View Of Subframe Mount

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt

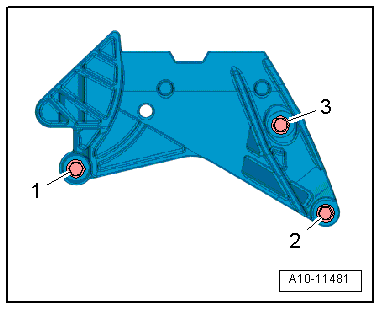

- Tightening specification and sequence. Refer to Figure.
- Always replace
Engine Support
- Removing and installing. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .
Engine Mount
- With support arm
- Removing and installing. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .
Bolt
- 40 Nm +90°
- Always replace
Bolt
- 20 Nm +90°
- Always replace
Bolt
- 40 Nm +90°
- Always replace
Bolt
- 60 Nm +90°
- Always replace
Pendulum Support
- Removing and installing. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
Bolt
- Tightening specification and sequence. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
- Always replace
Bolt
- Tightening specification and sequence. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
- Always replace
Bolt
- Tightening specification and sequence. Refer to PENDULUM SUPPORT, REMOVING AND INSTALLING .
- Always replace
Bolt
- 60 Nm +90°
- Always replace
Bolt
- 60 Nm +90°
- Always replace
Transmission Mount
- With support arm
- Removing and installing. Refer to TRANSMISSION MOUNT, REMOVING AND INSTALLING .
Bolt
- 50 Nm + 90°
- Always replace
