Shift Unit, Servicing

Special tools and workshop equipment required

• Breather Tube Tool: T10203
• Torque Wrench 1331 5-50Nm: VAG1331

-- Remove the shift unit. Refer to OVERVIEW - TRANSMISSION HOUSING AND GEARSHIFT MECHANISM .

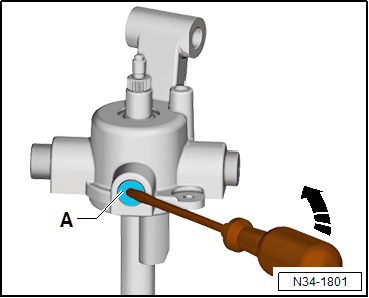

Locking Elbow A, Removing from Gearshift Cover

Fig 1: Identifying Locking Pin Removed From Shift Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the outer part of the locking elbow.

-- Carefully pry out the locking elbow with a screwdriver.

Locking Elbow A, Pressing into Gearshift Cover

Fig 2: Identifying Locking Pin Pressed In Into Shift Cover

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Installation position:

The marking -arrow- faces toward upper section of the selector shaft.

-- Install the shift unit. Refer to OVERVIEW - TRANSMISSION HOUSING AND GEARSHIFT MECHANISM .
