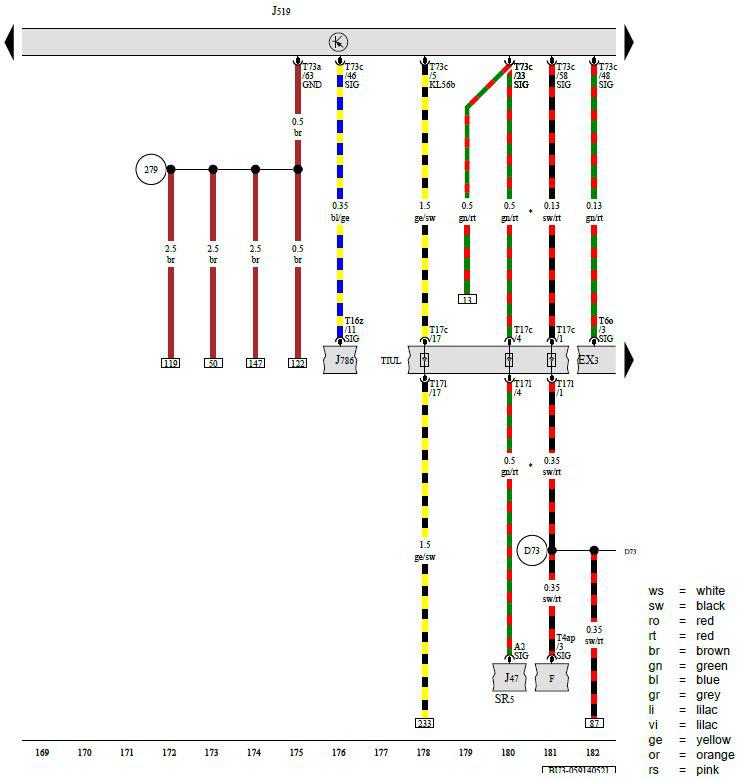

Vehicle Electrical System Control Module (11 Of 17)
EX3 - Emergency Flasher Switch
F - Brake Lamp Switch
J47 - Windshield Defogger Relay
J519 - Vehicle Electrical System Control Module
J786 - Rear Seat Heating Control Module
SR5 - Relay and Fuse Panel 5
T4ap - 4-Pin Connector
T6o - 6-Pin Connector
T16z - 16-Pin Connector
T17c - 17-Pin Connector
T17l - 17-Pin Connector
T73a - 73-Pin Connector
T73c - 73-Pin Connector
TIUL - Coupling Point in Interior, Bottom Left
279 - Ground Connection 5 (in Interior Wiring Harness)
D73 - Positive Connection (54) (in Engine/Motor Compartment Wiring Harness)
* - Depending on Equipment
