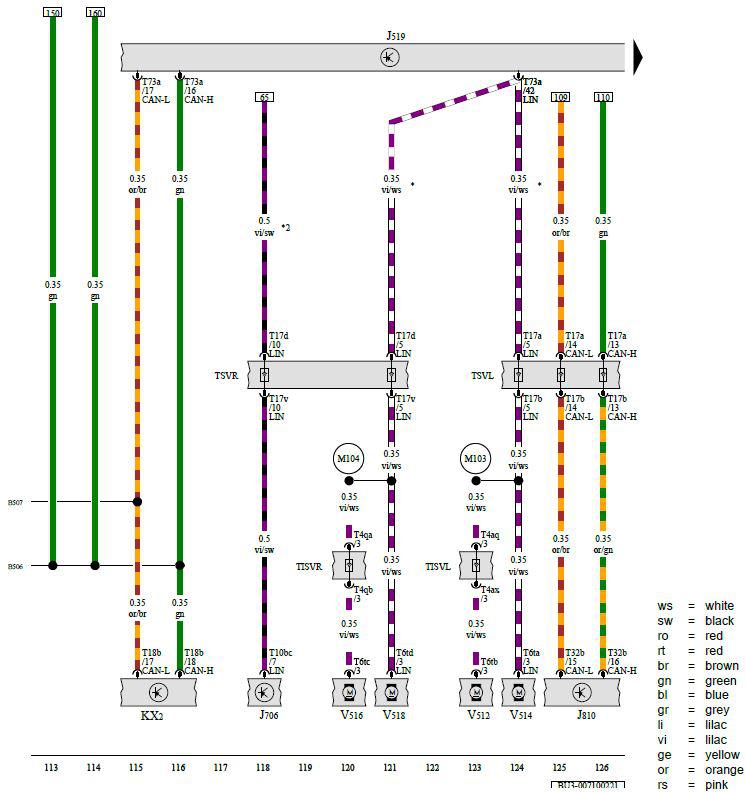

Vehicle Electrical System Control Module, Passenger Occupant Detection System Control Module, Driver Seat Adjustment Control Module, Instrument Cluster
J519 - Vehicle Electrical System Control Module
J706 - Passenger Occupant Detection System Control Module
J810 - Driver Seat Adjustment Control Module
KX2 - Instrument Cluster
T4aq - 4-Pin Connector
T4ax - 4-Pin Connector
T4qa - 4-Pin Connector
T4qb - 4-Pin Connector
T6ta - 6-Pin Connector
T6tb - 6-Pin Connector
T6tc - 6-Pin Connector
T6td - 6-Pin Connector
T10bc - 10-Pin Connector
T17a - 17-Pin Connector
T17b - 17-Pin Connector
T17d - 17-Pin Connector
T17v - 17-Pin Connector
T18b - 18-Pin Connector
T32b - 32-Pin Connector
T73a - 73-Pin Connector
TISVL - Coupling Station in Left Front Seat
TISVR - Coupling Station in Right Front Seat
TSVL - Left Front Seat Coupling Station
TSVR - Right Front Seat Coupling Station
V512 - Left Front Seat Backrest Fan 1
V514 - Left Front Seat Cushion Fan 1
V516 - Right Front Seat Backrest Fan 1
V518 - Right Front Seat Cushion Fan 1
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507 - Comfort CAN Bus Low Connection (in Interior Wiring Harness)
M103 - LIN Bus Connection 1 (in Left Front Seat Wiring Harness)
M104 - LIN Bus Connection 1 (in Right Front Seat Wiring Harness)
* - Depending on Equipment
*2 - For Vehicles with US Equipment
