Window Guide, Removing And Installing: Installing

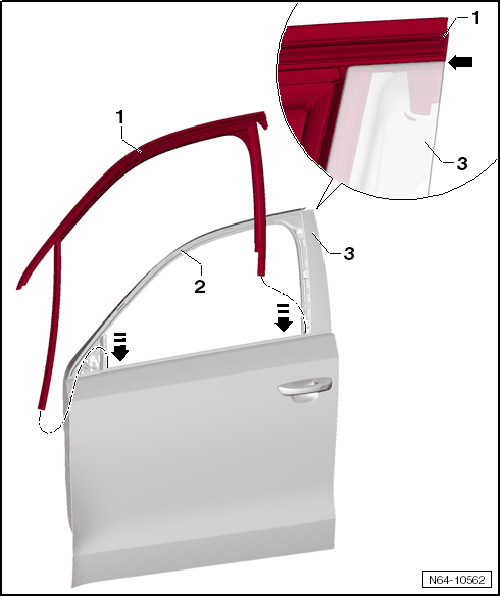

Fig 1: Identifying Window Guide

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Spray the window guide with soapy water to make it easier to install.

-- Install the upper corner of the B-pillar -3- -arrow-.

-- Install the window guide -1- forward moving along the door flange -2-.

-- Insert the window guide -1- into the door at the B-pillar -3-.

-- Insert the window guide -1- into the door at the A-pillar.

-- Insert the A-pillar support into the guide rail starting from the top to the bottom in direction of -arrow-.

-- Pull the sealing lip on the window guide onto the door flange -2-.

NOTE:

Install the trim molding for the window guide if equipped. Refer to FRONT WINDOW GUIDE TRIM MOLDING, REMOVING AND INSTALLING .

Make sure the window guide -1- fits evenly when installing it (wind noises).

Further installation is the reverse order of removal.
