Window Guide, Removing And Installing: Removing

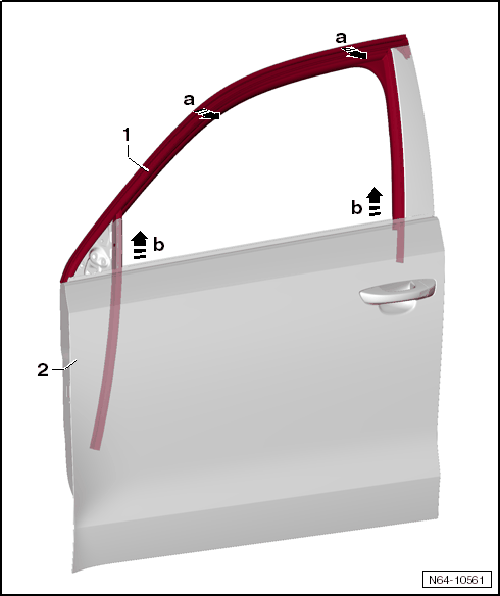

Fig 1: Identifying Window Guide

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the front door trim panel. Refer to FRONT DOOR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the door window. Refer to FRONT DOOR WINDOW, REMOVING AND INSTALLING .

-- Remove the inner window shaft strip. Refer to INNER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the outer window shaft strip. Refer to OUTER WINDOW SHAFT STRIP, REMOVING AND INSTALLING .

-- Remove the B-Pillar trim. Refer to FRONT DOOR B-PILLAR TRIM, REMOVING AND INSTALLING .

-- Roll the window guide sealing lip -1- off the door flange from the inside.

Remove the trim molding for the window guide if equipped. Refer to FRONT WINDOW GUIDE TRIM MOLDING, REMOVING AND INSTALLING .

-- Remove the window guide -1- in direction of -arrows a- from the door flange all the way around.

-- Remove the window guide -1- from the mounts on the front door -2- in direction of -arrows b-.
