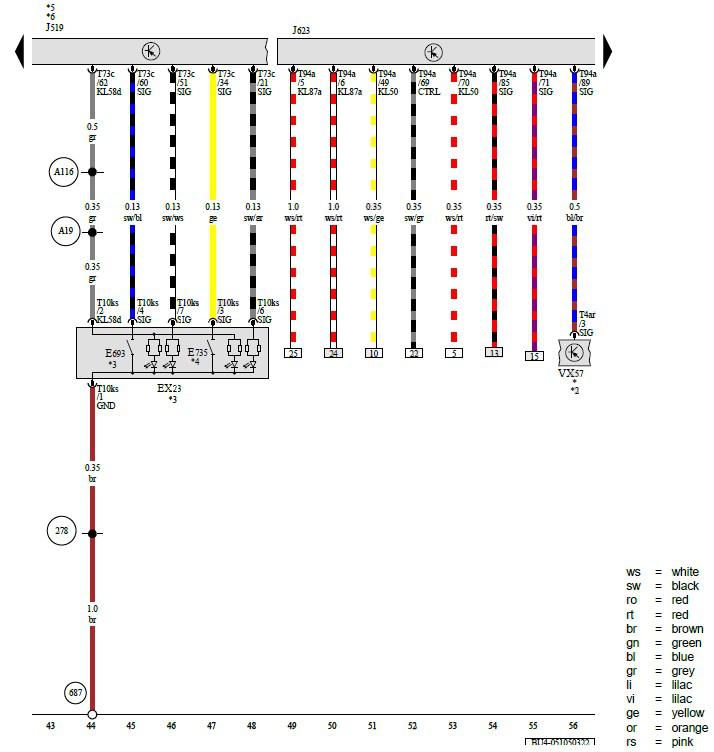

Center Console Switch Module 1, Vehicle Electrical System Control Module, Engine/Motor Control Module, Radiator Fan
EX23
Center Console Switch Module 1
E693
Start/Stop Mode Button
E735
Driving Profile Selection Button
J519
Vehicle Electrical System Control Module
J623
Engine/Motor Control Module
T4ar
4-Pin Connector, Black
T10ks
10-Pin Connector, Black
T73c
73-Pin Connector, Black
T94a
94-Pin Connector, Black
VX57
Radiator Fan
278
Ground Connection 4 (in Interior Wiring Harness)
687
Ground Connection 1 on Center Tunnel
A19
Connection 58d (in Instrument Panel Wiring Harness)
A116
Connection 58d (in Instrument Panel Wiring Harness) 2
*
Pre-Wired Component
*2
Refer to Applicable Radiator Fan Wiring Diagram
*3
For Vehicles with Start/Stop System
*4
Depending on Equipment
*5
Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
*6
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
