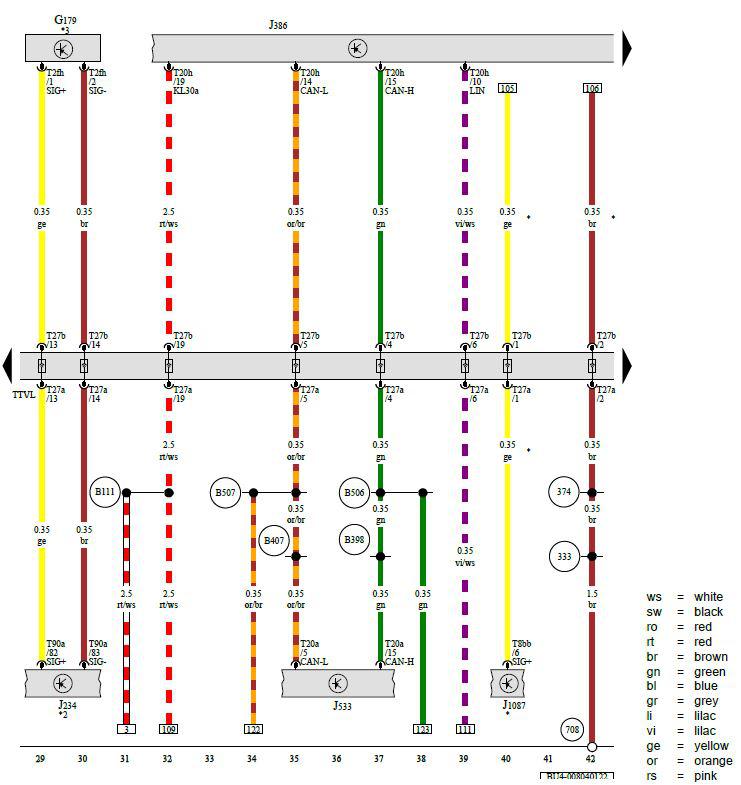

Driver Thorax Airbag Crash Sensor, Airbag Control Module, Driver Door Control Module, Data Bus on Board Diagnostic Interface, Blind Spot Detection Control Module 2
G179 - Driver Thorax Airbag Crash Sensor
J234 - Airbag Control Module
J386 - Driver Door Control Module
J533 - Data Bus on Board Diagnostic Interface
J1087 - Blind Spot Detection Control Module 2
T2fh - 2-Pin Connector, Yellow
T8bb - 8-Pin Connector, Black
T20a - 20-Pin Connector, Black
T20h - 20-Pin Connector, White
T27a - 27-Pin Connector, Black
T27b - 27-Pin Connector, Black
T90a - 90-Pin Connector, Yellow
TTVL - Left Front Door Coupling Point
333 - Ground Connection 5 (in Rear Wring Harness)
374 - Ground Connection 9 (in Main Wring Harness)
708 - Ground Connection 2 on Right Rear Chassis Side Member
B111 - Positive Connection 1 (30a) (in Interior Wring Harness)
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507 - Comfort CAN Bus Low Connection (in Interior Wiring Harness)
* - For Vehicles with Blind Spot Detection
*2 - Refer to Applicable Airbag Wring Diagram
*3 - Depending on Equipment
