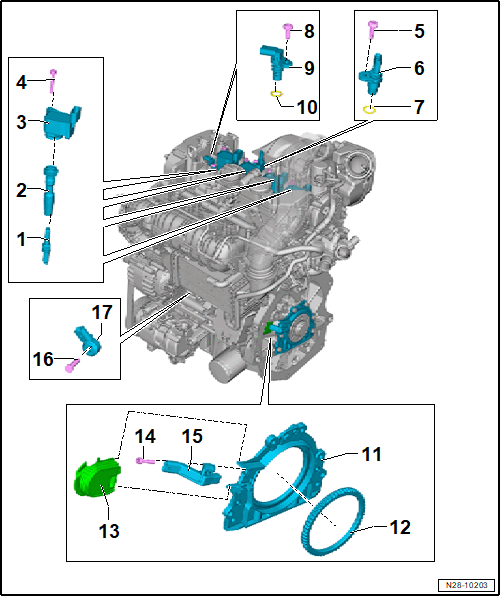

Overview - Ignition System
- Spark Plug
- Tightening specification: 22 Nm
- Remove and install using the Spark Plug Removal Tool: 3122B
- Replacement interval. Refer to Maintenance Schedules (USA and Canada) .
- Spark Plug Connectors
- Ignition coils and spark plug connectors can be obtained individually for repairs. Refer to Parts Information.
- Ignition Coil
- Ignition Coil 1 with Power Output Stage -N70-
- Ignition Coil 2 with Power Output Stage -N127-
- Ignition Coil 3 with Power Output Stage -N291-
- Ignition Coil 4 with Power Output Stage -N292-
- Removing and Installing. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .
- Ignition coils and spark plug connectors can be obtained individually for repairs. Refer to Parts Information.
- Bolt
- 8 Nm
- Shear bolt
- Exhaust Camshaft Position Sensor -G1003-NOTE:
The exhaust camshaft position sensor cannot be replaced at this time.
If faulty, replace the camshaft housing.
- Removing and Installing. Refer to Exhaust Camshaft Position Sensor -G1003-, REMOVING AND INSTALLING .
- O-Ring
- Check for damage and replace if necessary.
- Shear bolt
- Intake Camshaft Position Sensor -G1002-NOTE:
The intake camshaft position sensor cannot be replaced at this time.
If faulty, replace the camshaft housing.
- Removing and Installing. Refer to Intake Camshaft Position Sensor -G1002-, REMOVING AND INSTALLING .
- O-Ring
- Check for damage and replace if necessary.
- Transmission Side Sealing Flange
- Removing and Installing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .
- Sensor Wheel
- For the Engine Speed Sensor -G28-
- Unit with sealing flange on the transmission side
- Plug
- Bolt
- 4.5 Nm
- Engine Speed Sensor -G28-
- Removing and Installing. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
- Bolt
- 20 Nm
- The tightening specifications affect function of the knock sensor
- Knock Sensor 1 -G61-
- Removing and Installing. Refer to Knock Sensor 1 -G61-, REMOVING AND INSTALLING .
