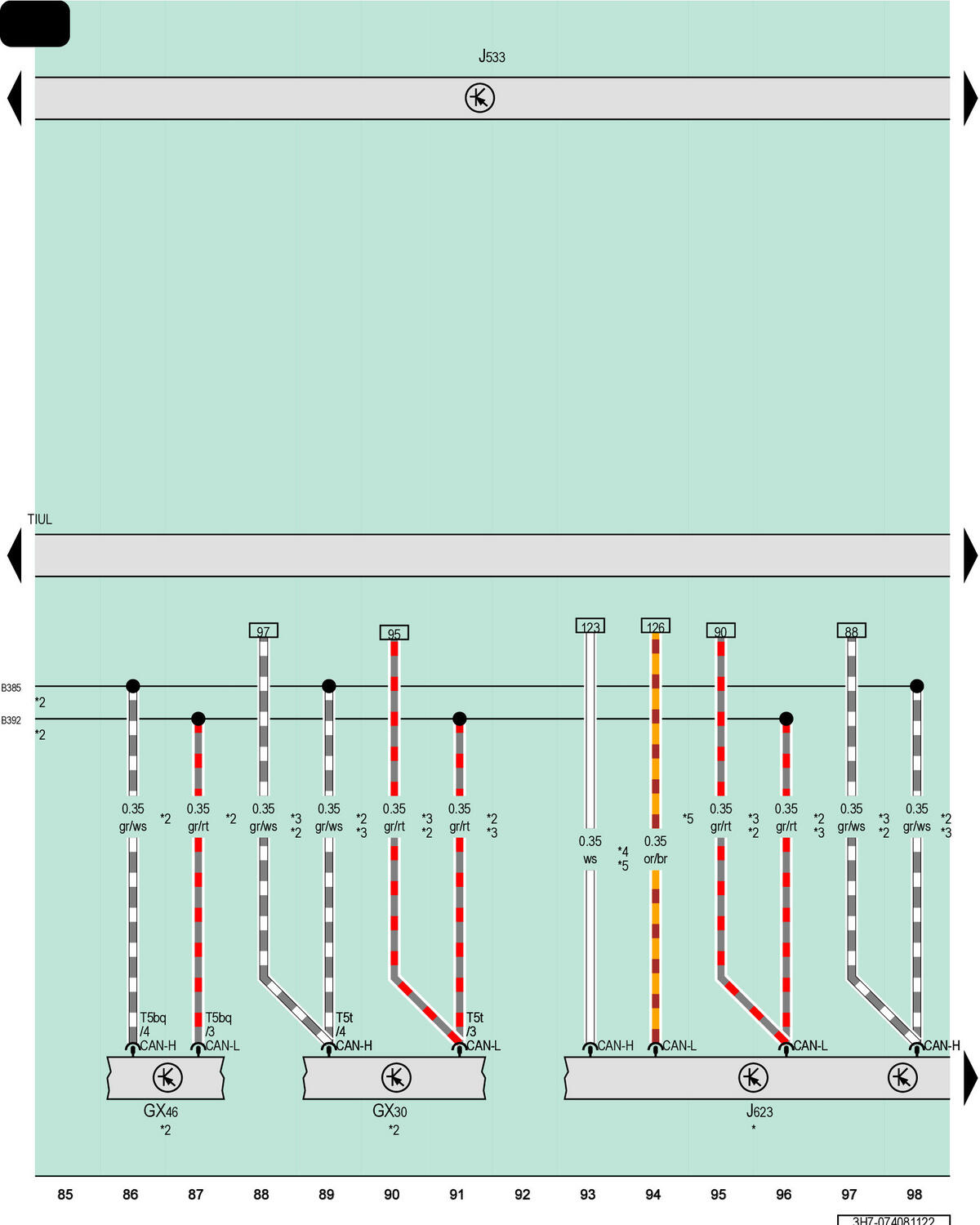

NOX Sensor Control Module, NOX Sensor Control Module 2, Data Bus On Board Diagnostic Interface, Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

GX30

NOx Sensor Control Module

GX46

NOx Sensor Control Module 2

J533

Data Bus on Board Diagnostic Interface

J623

Engine/Motor Control Module

T5bq

5-Pin Connector, Black

T5t

5-Pin Connector, Black

TIUL

Coupling Point in Interior, Bottom Left

B385

Powertrain CAN Bus High Connection 3 (in Main Wiring Harness)

B392

Powertrain CAN Bus Low Connection 3 (in Main Wiring Harness)

*

Refer to Applicable Wiring Diagram

*2

Refer to Applicable Engine Wiring Diagram

*3

Depending on Equipment

*4

Turquoise Wire

*5

For Vehicles with Hybrid Drive
