Data Bus On Board Diagnostic Interface, Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, Diagnostic Connection

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

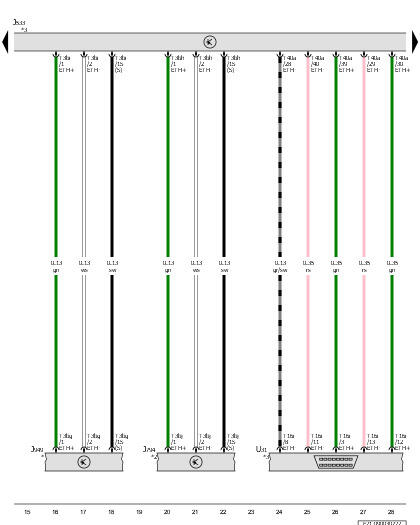

Data Bus on Board Diagnostic Interface

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

T3bg

3-Pin Connector, Black

T3bh

3-Pin Connector, Black

T3bi

3-Pin Connector, Black

T3bj

3-Pin Connector, Black

T16i

16-Pin Connector, Black

T40a

40-Pin Connector, Black

U31

Diagnostic Connection

*

Refer to Applicable Communication Wiring Diagram

*2

Refer to the Applicable Multimedia System Wiring Diagram

*3

Refer to Applicable Wiring Diagram for Data Bus Networking
