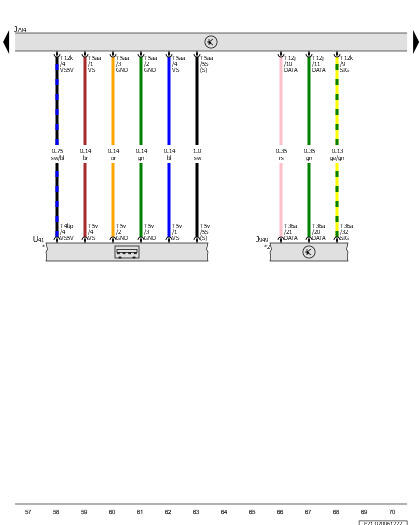

Information Electronics Control Module 1, Control Module For Emergency Call Module And Communication Unit, USB Connection 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J794

Information Electronics Control Module 1

J949

Control Module for Emergency Call Module and Communication Unit

T4bp

4-Pin Connector, Red

T5aa

5-Pin Connector, Yellow

T5v

5-Pin Connector, Green

T12j

12-Pin Connector, Blue

T12k

12-Pin Connector, Gray

T36a

36-Pin Connector, Black

U41

USB Connection 1

*

Refer to the Applicable USB Charging Socket Wiring Diagram

*2

Refer to Applicable Communication Wiring Diagram
