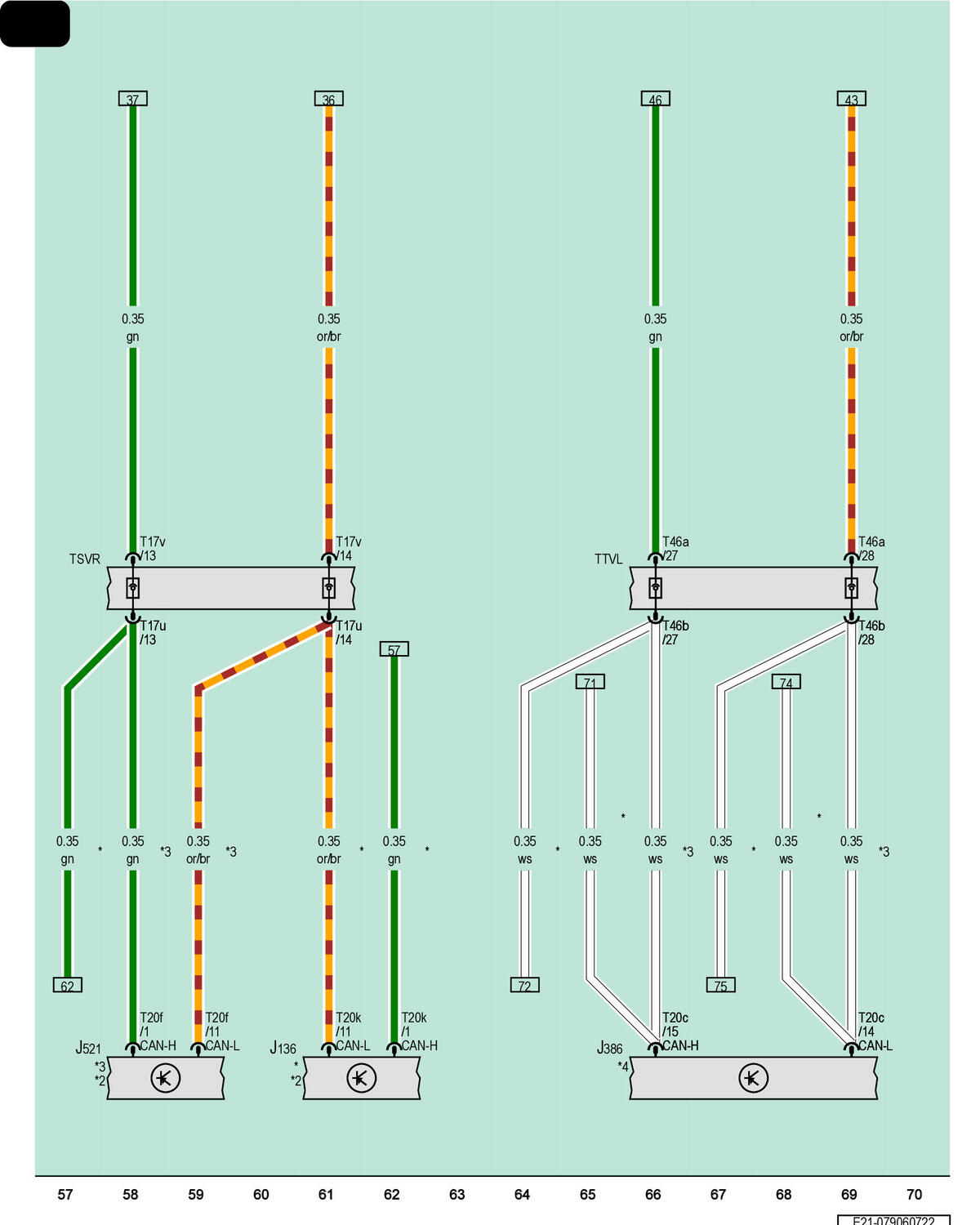

Memory Seat/Steering Column Adjustment Control Module, Driver Door Control Module, Front Passenger Memory Seat Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J136

Memory Seat/Steering Column Adjustment Control Module

J386

Driver Door Control Module

J521

Front Passenger Memory Seat Control Module

T17u

17-Pin Connector, Red

T17v

17-Pin Connector, Red

T20c

20-Pin Connector, White

T20f

20-Pin Connector, Black

T20k

20-Pin Connector, Black

T46a

46-Pin Connector, Black

T46b

46-Pin Connector, Black

TSVR

Right Front Seat Coupling Station

TTVL

Left Front Door Coupling Point

*

For RHD Vehicles

*2

Refer to Applicable Seat Adjustment Wiring Diagram

*3

For LHD Vehicles

*4

Refer to Applicable Driver Door Control Module Wiring Diagram
