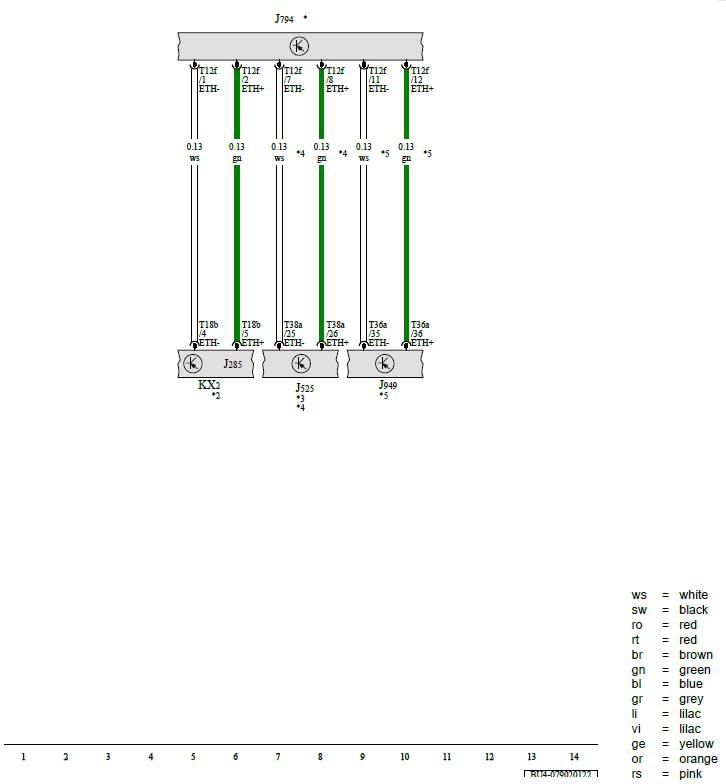

Digital Sound System Control Module, Information Electronics Control Module 1, Control Module for Emergency Call Module and Communication Unit, Instrument Cluster

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J285 -  Instrument Cluster Control Module

J525 -  Digital Sound System Control Module

J794 -  Information Electronics Control Module 1

J949 -  Control Module for Emergency Call Module and Communication Unit

KX2 -  Instrument Cluster

T12f -  12-Pin Connector, Green

T18b -  18-Pin Connector, Black

T36a -  36-Pin Connector, Black

T38a -  38-Pin Connector, Black

* -  Refer to the Applicable Multimedia System Wiring Diagram

*2 -  Refer to Applicable Wiring Diagram for Instrument Cluster

*3 -  Refer to Applicable Sound System Wiring Diagram

*4 -  For Vehicles with Sound System

*5 -  For Vehicles with Emergency Call Module
