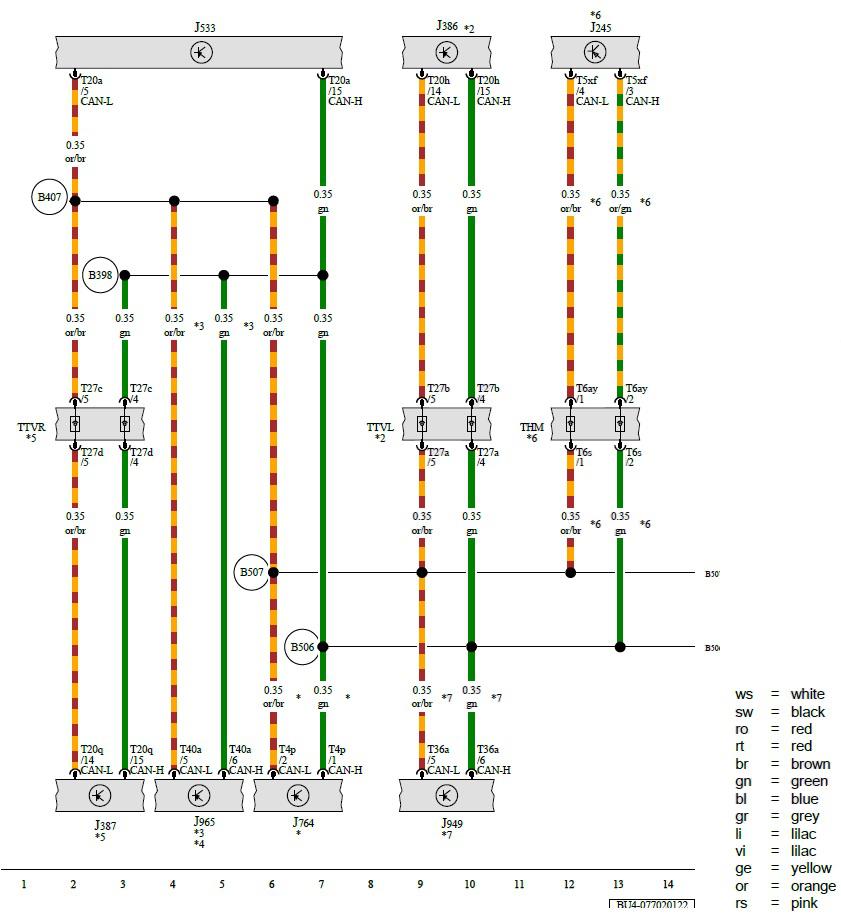

Sunroof Control Module, Driver Door Control Module, Front Passenger Door Control Module, Data Bus on Board Diagnostic Interface, Electronic Steering Column Lock Control Module, Control Module for Emergency Call Module and Communication Unit, Access/Start System Interface
J245 - Sunroof Control Module
J386 - Driver Door Control Module
J387 - Front Passenger Door Control Module
J533 - Data Bus on Board Diagnostic Interface
J764 - Electronic Steering Column Lock Control Module
J949 - Control Module for Emergency Call Module and
Communication - Unit
J965 - Access/Start System Interface
T4p - 4-Pin Connector, Black
T5xf - 5-Pin Connector, Black
T6ay - 6-Pin Connector, Black
T6s - 6-Pin Connector, Black
T20a - 20-Pin Connector, Black
T20h - 20-Pin Connector, White
T20q - 20-Pin Connector, White
T27a - 27-Pin Connector, Black
T27b - 27-Pin Connector, Black
T27c - 27-Pin Connector, Black
T27d - 27-Pin Connector, Black
T36a - 36-Pin Connector, Black
T40a - 40-Pin Connector, Black
THM - Coupling Point on Roof, Center
TTVL - Left Front Door Coupling Point
TTVR - Right Front Door Coupling Point
B398 - Comfort System CAN Bus High Connection 2 (in Main Wiring Harness)
B407 - Comfort System CAN Bus Low Connection 2 (in Main Wiring Harness)
B506 - Comfort CAN Bus High Connection (in Interior Wiring Harness)
B507 - Comfort CAN Bus Low Connection (in Interior Wiring Harness)
* - For Vehicles with Power Steering Column Adjustment
*2 - Refer to Applicable Driver Door Wiring Diagram
*3 - For Vehicles with Access/Start Authorization System
*4 - Refer to the Applicable Access/Start Authorization System Wiring Diagram
*5 - Refer to Applicable Front Passenger Door Wiring Diagram
*6 - For Vehicles with a Sunroof
*7 - For Vehicles with Emergency Call Module
