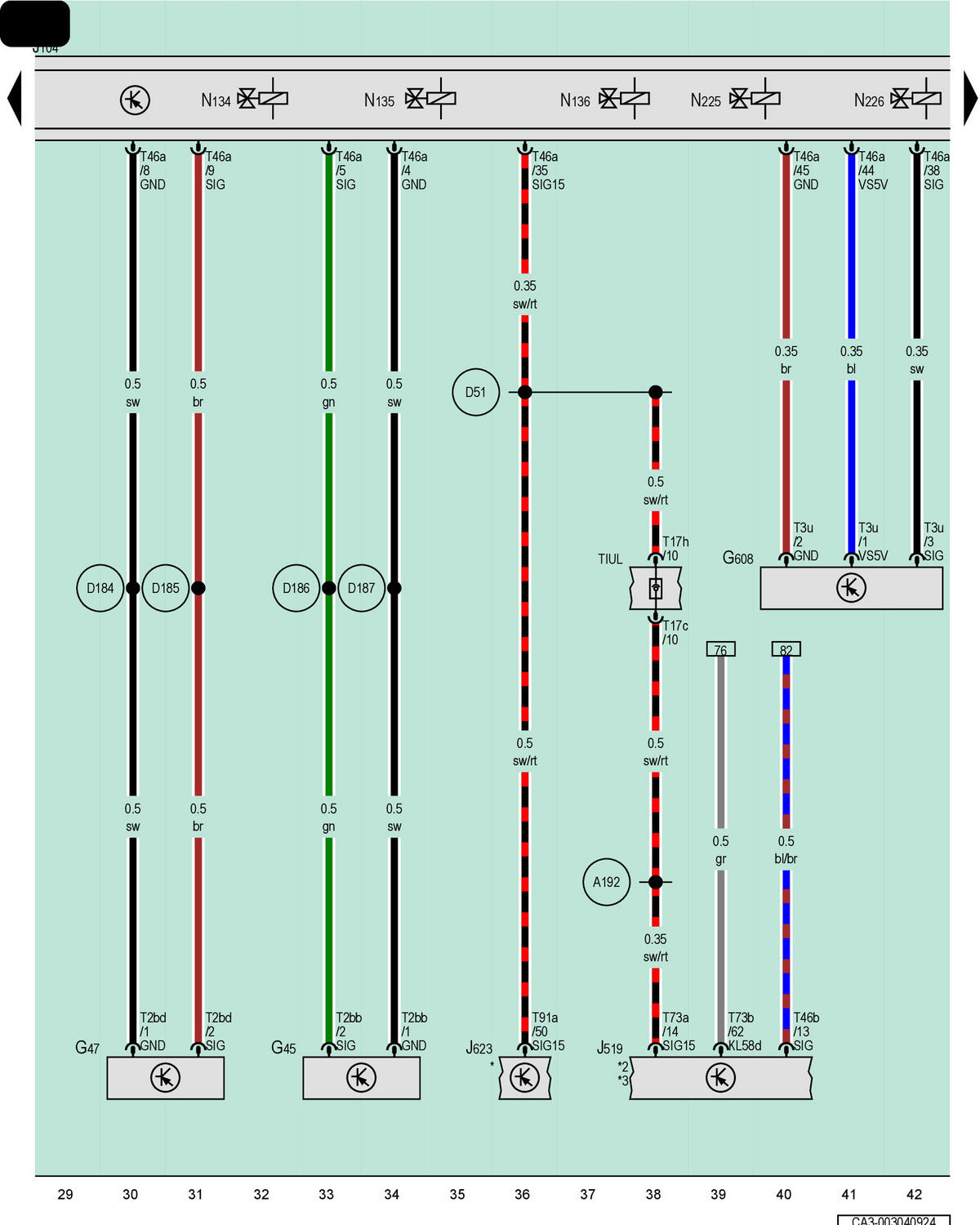

Right Front Abs Wheel Speed Sensor, Left Front Abs Wheel Speed Sensor, Vacuum Sensor, Abs Control Module, Vehicle Electrical System Control Module, Engine/Motor Control Module
G45
Right Front ABS Wheel Speed Sensor
G47
Left Front ABS Wheel Speed Sensor
G608
Vacuum Sensor
J104
ABS Control Module
J519
Vehicle Electrical System Control Module
J623
Engine/Motor Control Module
N134
Left Rear ABS Inlet Valve
N135
Right Rear ABS Outlet Valve
N136
Left Rear ABS Outlet Valve
N225
Driving Dynamics Regulation Switch Valve 1
N226
Driving Dynamics Regulation Switch Valve 2
T2bb
2-Pin Connector, Black
T2bd
2-Pin Connector, Black
T3u
3-Pin Connector, Black
T17c
17-Pin Connector, Blue
T17h
17-Pin Connector, Blue
T46a
46-Pin Connector, Black
T46b
46-Pin Connector, Black
T73a
73-Pin Connector, Black
T73b
73-Pin Connector, Black
T91a
91-Pin Connector, Black
TIUL
Coupling Point in Interior, Bottom Left
A192
Positive Connection 3 (15a) (in Instrument Panel Wiring Harness)
D51
Positive Connection 1 (15) (in Engine/Motor Compartment Wiring Harness)
D184
Left Front Speed Sensor Positive Connection (in Engine/Motor Compartment Wiring Harness)
D185
Left Front Speed Sensor Negative Connection (in Engine/Motor Compartment Wiring Harness)
D186
Right Front Speed Sensor Positive Connection (in Engine/Motor Compartment Wiring Harness)
D187
Right Front Speed Sensor Negative Connection (in Engine/Motor Compartment Wiring Harness)
*
Refer to Applicable Engine Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior
*3
Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior
