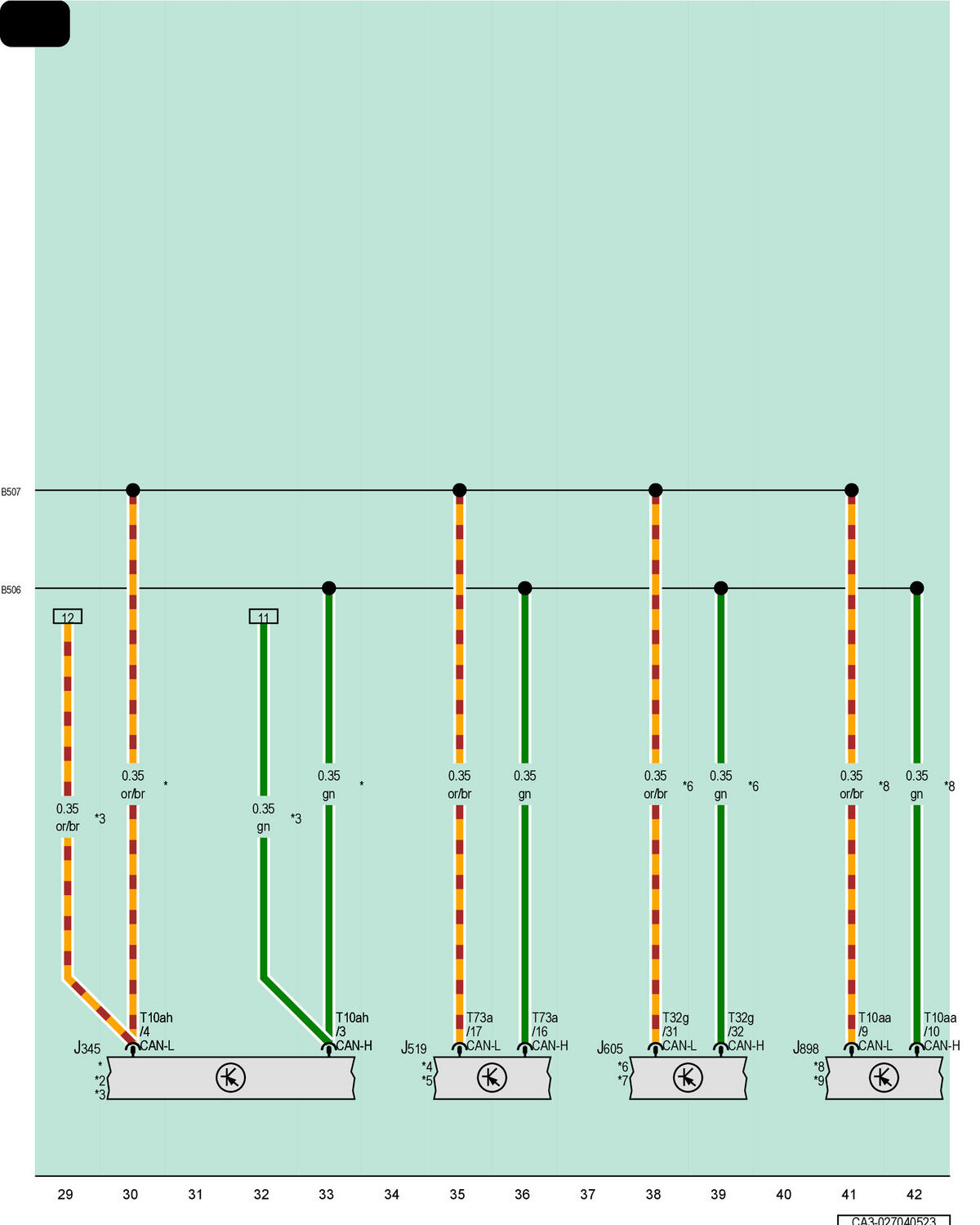

Towing Recognition Control Module, Vehicle Electrical System Control Module, Rear Lid Control Module, Windshield Projection Head Up Display Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J345

Towing Recognition Control Module

J519

Vehicle Electrical System Control Module

J605

Rear Lid Control Module

J898

Windshield Projection Head Up Display Control Module

T10aa

10-Pin Connector, Black

T10ah

10-Pin Connector, Black

T32g

32-Pin Connector, Black

T73a

73-Pin Connector, Black

B506

Comfort CAN Bus High Connection (in Interior Wiring Harness)

B507

Comfort CAN Bus Low Connection (in Interior Wiring Harness)

*

For Vehicles with Trailer Hitch

*2

Refer to the Wiring Diagram for Trailer Towing

*3

For Vehicles with Trailer Setup

*4

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*5

Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior

*6

For Vehicles with Power Rear Lid Opening

*7

Refer to Applicable Power Rear Lid Wiring Diagram

*8

For Vehicles with Windshield Projection

*9

Refer to Applicable Windshield Projection Wiring Diagram
