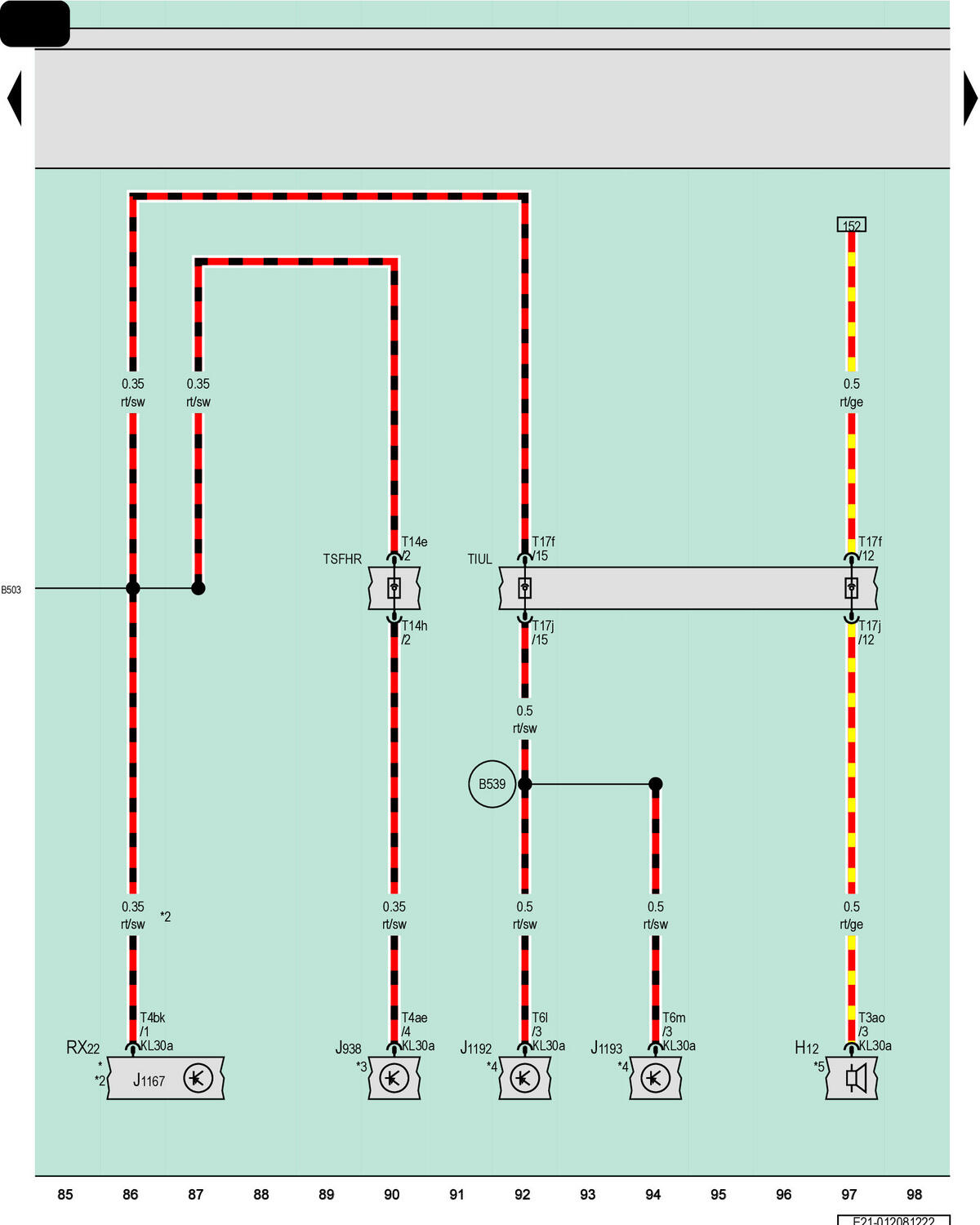

Alarm Horn, Power Rear Lid Opening Control Module, Burglary Protection Control Module 2, Burglary Protection Control Module 3, Engine Sound Generator Module 2, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

H12

Alarm Horn

J938

Power Rear Lid Opening Control Module

J1167

Engine Sound Generator Control Module 2

J1192

Burglary Protection Control Module 2

J1193

Burglary Protection Control Module 3

RX22

Engine Sound Generator Module 2

Fuse Panel C

T3ao

3-Pin Connector, Black

T4ae

4-Pin Connector, Black

T4bk

4-Pin Connector, Black

T6l

6-Pin Connector, Black

T6m

6-Pin Connector, Black

T14e

14-Pin Connector, Black

T14h

14-Pin Connector, Black

T17f

17-Pin Connector, Brown

T17j

17-Pin Connector, Brown

TIUL

Coupling Point in Interior, Bottom Left

TSFHR

Coupling Point on Right Rear Bumper

B503

Positive Connection 7 (30a) (in Interior Wiring Harness)

B539

Connection 30 (in Main Wiring Harness)

Refer to the Applicable Engine Sound Generator Wiring Diagram

For USA Only

Refer to Applicable Power Rear Lid Wiring Diagram

Refer to the Applicable Access/Start Authorization System Wiring Diagram

Refer to the Applicable Anti-Theft Alarm System Wiring Diagram
