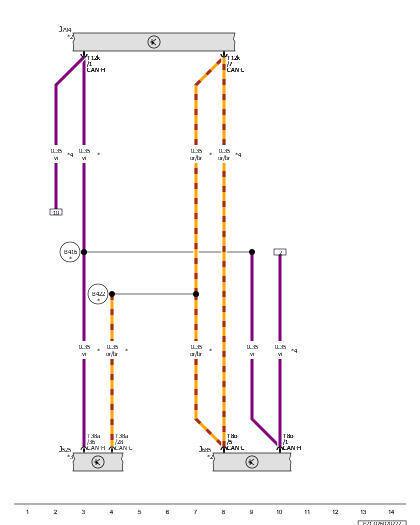

Digital Sound System Control Module, Front Information Display Control Head, Information Electronics Control Module 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J525

Digital Sound System Control Module

J685

Front Information Display Control Head

J794

Information Electronics Control Module 1

T8o

8-Pin Connector, Black

T12k

12-Pin Connector, Gray

T38a

38-Pin Connector, Black

B416

Infotainment CAN Bus High Connection 2 (in Main Wiring Harness)

B422

Infotainment CAN Bus Low Connection 2 (in Main Wiring Harness)

*

For Vehicles with Sound System

*2

Refer to the Applicable Multimedia System Wiring Diagram

*3

Refer to Applicable Sound System Wiring Diagram

*4

For Vehicles Without Sound System
