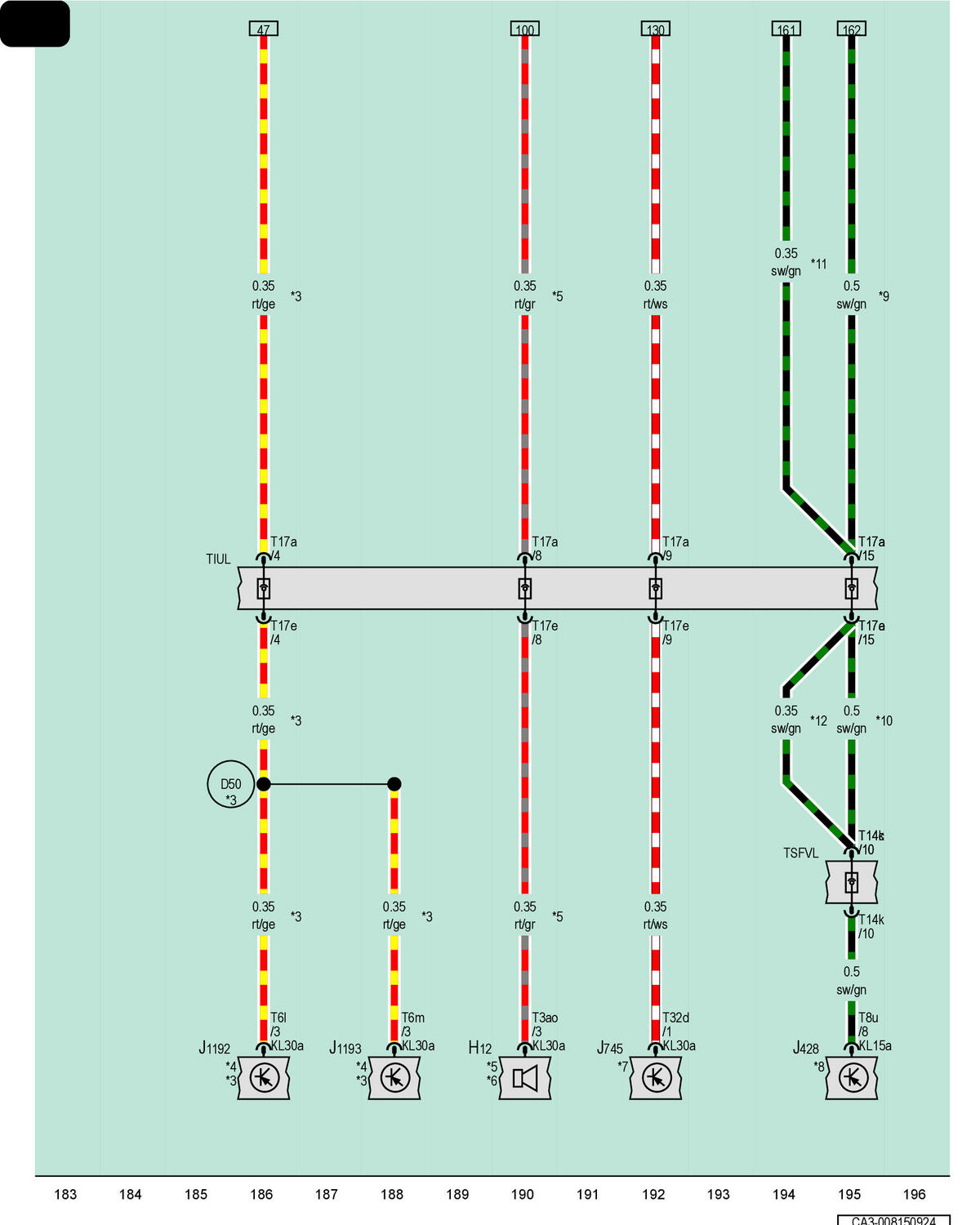

Alarm Horn, Control Module For Adaptive Cruise Control, Cornering Lamp And Headlamp Range Control Module, Burglary Protection Control Module 2, Burglary Protection Control Module 3

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

H12

Alarm Horn

J428

Control Module for Adaptive Cruise Control

J745

Cornering Lamp and Headlamp Range Control Module

J1192

Burglary Protection Control Module 2

J1193

Burglary Protection Control Module 3

T3ao

3-Pin Connector, Black

T6l

6-Pin Connector, Black

T6m

6-Pin Connector, Black

T8u

8-Pin Connector, Black

T14c

14-Pin Connector, Black

T14k

14-Pin Connector, Black

T17a

17-Pin Connector, Black

T17e

17-Pin Connector, Black

T32d

32-Pin Connector, Gray

TIUL

Coupling Point in Interior, Bottom Left

TSFVL

Coupling Point on Left Front Bumper

D50

Positive Connection (30) (in Engine/Motor Compartment Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Ground Concept in Vehicle Interior

*3

Depending on Equipment

*4

Refer to the Applicable Access/Start Authorization System Wiring Diagram

*5

For Vehicles with Anti-Theft Alarm System

*6

Refer to the Applicable Anti-Theft Alarm System Wiring Diagram

*7

Refer to Applicable Wiring Diagram for Headlamps

*8

Refer to Applicable Wiring Diagram for Adaptive Cruise Control

*9

Through September 2025

*10

Omitted as a Running Change

*11

From September 2024

*12

Running Change
