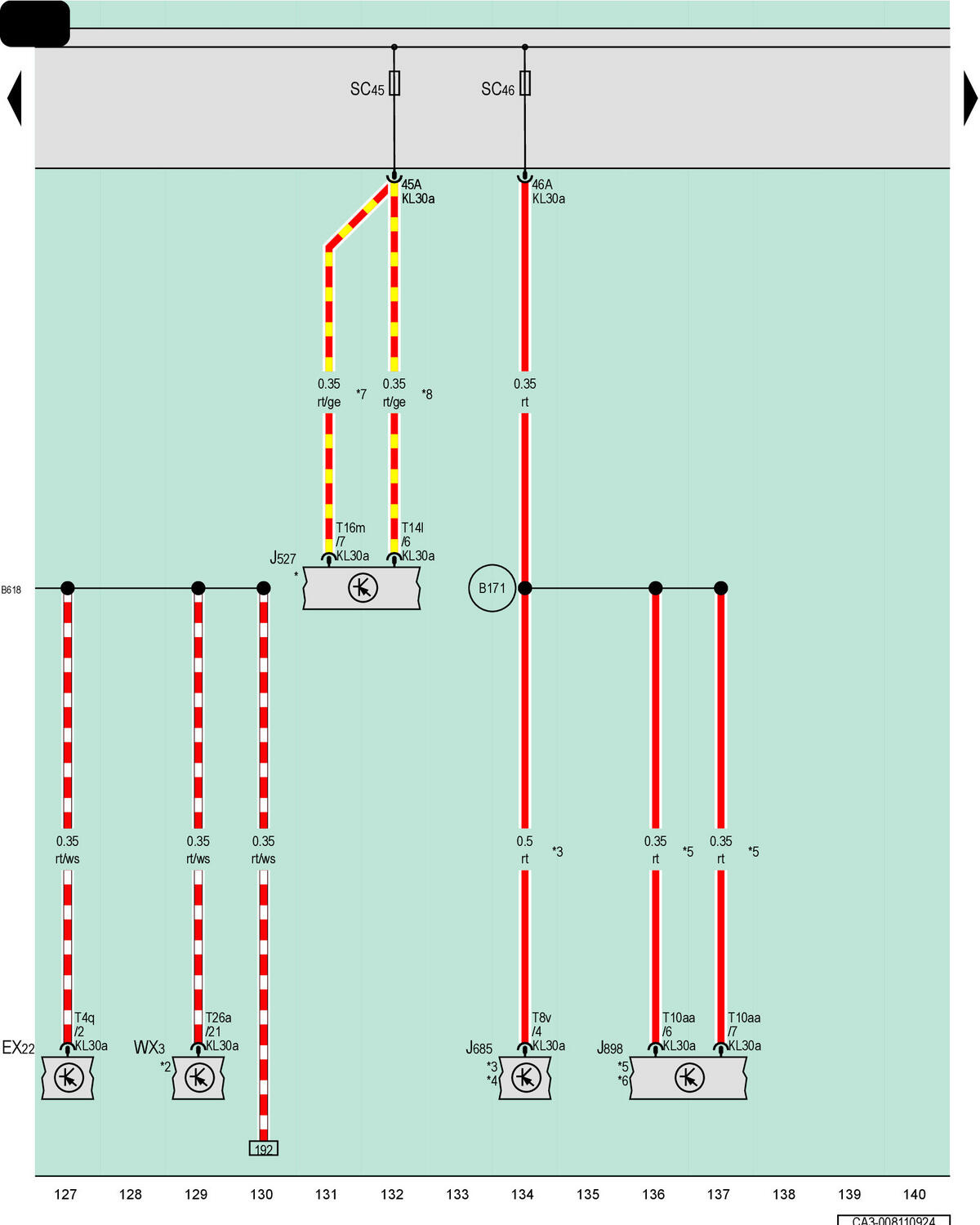

Center Instrument Panel Switch Module, Steering Column Electronics Control Module, Front Information Display Control Head, Windshield Projection Head Up Display Control Module, Fuse Panel C, Front Roof Module
EX22
Center Instrument Panel Switch Module
J527
Steering Column Electronics Control Module
J685
Front Information Display Control Head
J898
Windshield Projection Head Up Display Control Module
SC
Fuse Panel C
SC45
Fuse 45 (On Fuse Panel C)
SC46
Fuse 46 (On Fuse Panel C)
T4q
4-Pin Connector, Red
T8v
8-Pin Connector, Black
T10aa
10-Pin Connector, Black
T14l
14-Pin Connector, Black
T16m
16-Pin Connector, Black
T26a
26-Pin Connector, Black
WX3
Front Roof Module
B171
Positive Connection 3 (30) (in Interior Wiring Harness)
B618
Positive Connection 13 (30a) (in Interior Wiring Harness)
*
Refer to Applicable Steering Column Electronics Wiring Diagram
*2
Refer to Applicable Wiring Diagram for Interior Lamps
*3
For Vehicles with Navigation System
*4
Refer to the Applicable Multimedia System Wiring Diagram
*5
For Vehicles with Windshield Projection
*6
Refer to Applicable Windshield Projection Wiring Diagram
*7
For Vehicles Without Heated Steering Wheel
*8
For Vehicles with Heated Steering Wheel
