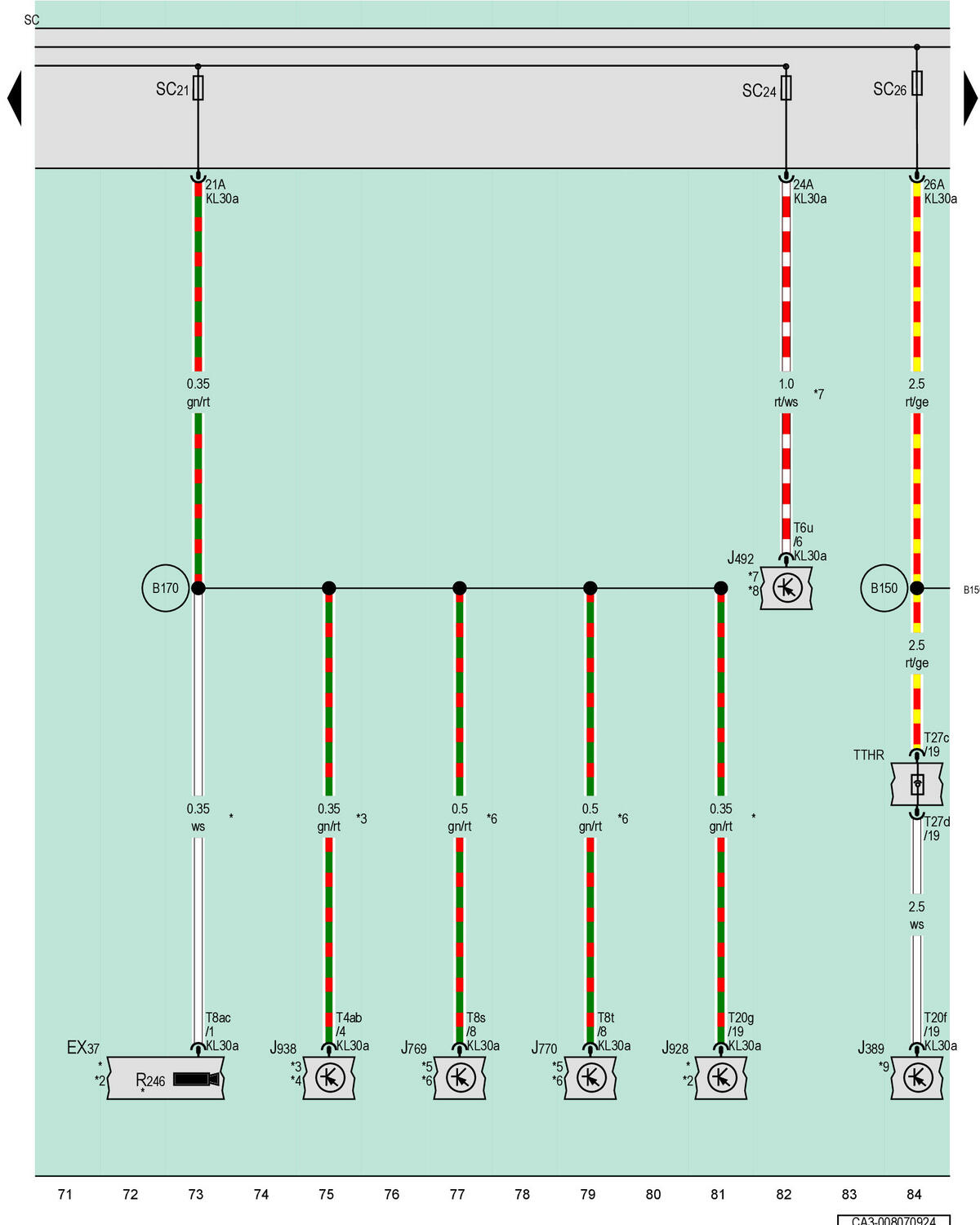

Rear Lid Handle, Right Rear Door Control Module, All-Wheel Drive Control Module, Lane Change Assistance Control Module, Lane Change Assistance Control Module 2, Peripheral Camera Control Module, Power Rear Lid Opening Control Module, Fuse Panel C
EX37
Rear Lid Handle
J389
Right Rear Door Control Module
J492
All-Wheel Drive Control Module
J769
Lane Change Assistance Control Module
J770
Lane Change Assistance Control Module 2
J928
Peripheral Camera Control Module
J938
Power Rear Lid Opening Control Module
R246
Rear Peripheral Camera
SC
Fuse Panel C
SC21
Fuse 21 (On Fuse Panel C)
SC24
Fuse 24 (On Fuse Panel C)
SC26
Fuse 26 (On Fuse Panel C)
T4ab
4-Pin Connector, Black
T6u
6-Pin Connector, Black
T8ac
8-Pin Connector, Black
T8s
8-Pin Connector, Black
T8t
8-Pin Connector, Black
T20f
20-Pin Connector, White
T20g
20-Pin Connector, Black
T27c
27-Pin Connector, Black
T27d
27-Pin Connector, Black
TTHR
Right Rear Door Coupling Point
B150
Positive Connection 2 (30a) (in Interior Wiring Harness)
B170
Positive Connection 2 (30) (in Interior Wiring Harness)
*
For Vehicles with Peripheral Camera
*2
Refer to Applicable Peripheral Camera Wiring Diagram
*3
For Vehicles with Power Rear Lid Opening
*4
Refer to Applicable Power Rear Lid Wiring Diagram
*5
Refer to Applicable Lane Change Assistance Wiring Diagram
*6
For Vehicles with Lane Change Assistance
*7
For AWD Vehicles
*8
Refer to Applicable AWD Wiring Diagram
*9
Refer to Applicable Front Passenger Door Control Module Wiring Diagram
